For the control, recording and evaluating of your measuring results, the ANALYSETTE 28 purchase includes a computer* and the ImageSizing-Software ISS – already installed, which guides you through the entire measurement process in an easy-to-learn and largely self-explanatory manner.

Simple, flexible, reliable.

*Offer valid worldwide except GUS due to customs regulations.

  • Easy evaluation with ImageSizing-Software ISS

    For all applications where besides the size also the shape affects the critical properties of a particle system, the ANALYSETTE 28 provides reliable statements and new findings. Via the optical analysis of particle shape and particle size, damaged particles, contaminates, agglomerates, or oversized and undersized particles are identified accurately and fast, and can be viewed as single images. At the same time, it offers a fast and efficient particle size measurement.

    Additionally it shows you fast and easily whether, for example, the grains of abrasives have sufficiently sharp edges, whether the particles of a plastic granulate are more spherical or oblong or whether the surface of an absorber is rather smooth or jagged.

    And because the complex shape of any particle cannot be described with a simple figure, the ImageSizing-Software ISS of the ANALYSETTE 28 offers a comprehensive library of morphology parameters for you to choose from.

  • THE FRITSCH CLOUD: Morphology at a glance

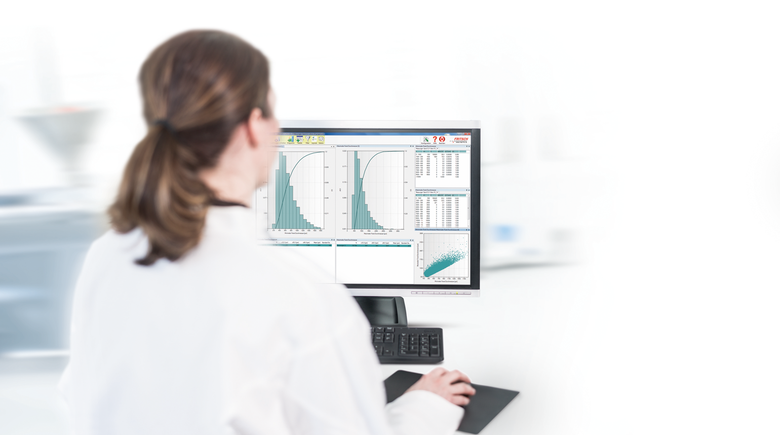

    Even the evaluation of the measuring results is uniquely simple with the ANALYSETTE 28. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud. The really important information for you about the morphology will be shown by the position of the data point in the Cloud. You freely choose which statement is of interest to you: the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section.

    Especially convenient: have several measurements displayed simultaneously in a chart and you will immediately see the differences between the relevant samples. A direct visual evaluation: brilliantly simple, uniquely flexible.

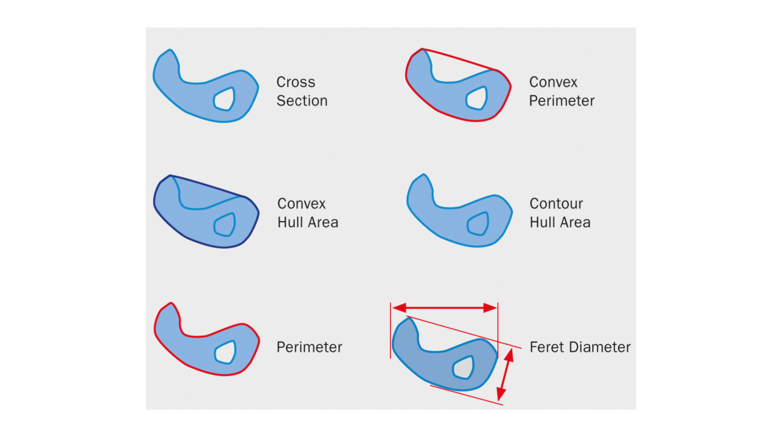

    Selection of possible shape parameters

  • Practical single image analysis

    The images of all particles can be saved if necessary and viewed directly in the evaluation software ISS. To do this, simply open the gallery with all images in order to have a quick overview of the typical particle shape of the analysed sample.

    Or select a certain data point in the FRITSCH Cloud with a simple mouse click to see the corresponding image, which you can immediately analyse, evaluate and also delete individual particles from. All available size and shape parameters are automatically displayed for each selected particle in the FRITSCH Cloud.

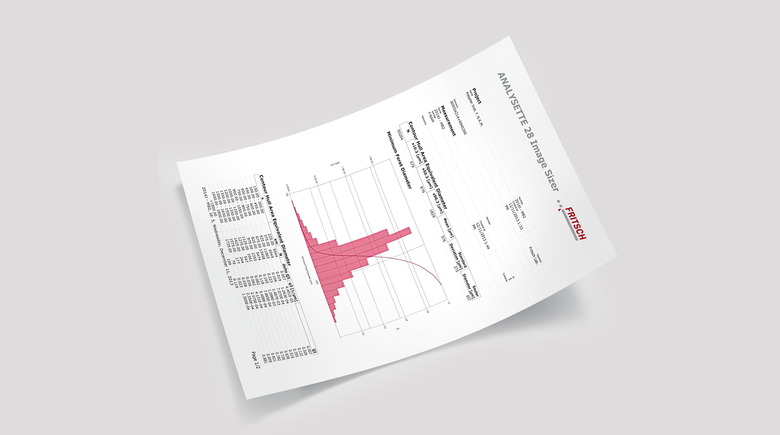

  • Freely configurable report generator

    For automatically displaying the results clearly arranged on the monitor, either as a Cloud, as a cumulative curve, as a bar chart or in a table form. Or define a layout according to your sieve analysis. The displayed results are printed out as you set it up on the monitor.

  • Use ISS for your microscopic images

    Simply load digital images from other imaging systems, e.g. from your microscope, into the evaluation software ISS of the ANALYSETTE 28 and access the full functionality and scope of evaluation options.

    Your advantage: a high-value image analysis software at no extra cost.

Download ISS Software Manual

Simply download the ImageSizing - Software Manual.
