For automatic evaluation, simple monitoring and documentation of your sieving results – just download the multilingual evaluation software AUTOSIEVE and test it non-binding and free of charge for 90 days.

  • PERFECT EVALUATION OF YOUR SIEVE ANALYSIS

    The extensive software AUTOSIEVE enables the automatic sieve evaluation with the Vibratory Sieve Shakers ANALYSETTE 3 PRO and ANALYSETTE 3 SPARTAN and with the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18. AUTOSIEVE is largely self-explanatory and enormously eases the weighing and the evaluation of your sieve analysis.
    Simple, flexible, reliable.

    AUTOSIEVE is easy to install and can be downloaded from here. All you have to do is to connect a laboratory analysis balance and then weigh the sieves before and after sieving using differential weighing. AUTOSIEVE will do the rest. The software enables the simple saving and retrieving of empty sieve weights, both of single sieves and complete sieve sets.

    FRITSCH Advantage: by utilizing the Software AUTOSIEVE, the FRITSCH Vibratory Sieve Shaker ANALYSETTE 3 PRO can be controlled via a RS232-interface. All functions such as amplitude, sieving time, interval operation and type of sieving can be entered comfortably via the computer. The interface and AUTOSIEVE allow the monitoring of the sieving process via the online comparison of the set and actual amplitude and therefore an automatic validation of the sieving process.

  • Features
      • Software AUTOSIEVE for all WINDOWS™-Versions as of Windows 7 or higher
      • Auto-Validation of the sieving process with the FRITSCH Vibratory Sieve Shaker ANALYSETTE 3 PRO
      • Database for sieve sets and sieve tare weights
      • Control of various balances
      • Automatic weighing of single sieves or complete sieve sets
      • Extensive presentation of the results: Display and printout as cumulative or frequency distribution and as graphs according to DIN ISO 9276-1
      • Pre-defined printout of results
      • Fixed value files for displaying quality relevant parameters
      • Display of reference curves
      • Subsequent input of already available sieving results
      • Different language modules
      • Recording and management of all parameters according to DIN 19683
      • Calculation of statistical values
      • Export of results to Excel™
      • System requirements - Software AUTOSIEVE

        AUTOSIEVE can be used with the Vibratory Sieve Shakers ANALYSETTE 3 PRO and ANALYSETTE 3 SPARTAN and the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18.

        Minimum software requirements
        Windows 7 or higher

        Minimum hardware requirements
        Standard WINDOWS™ PC with at least 2 Gbyte RAM

      Downloads

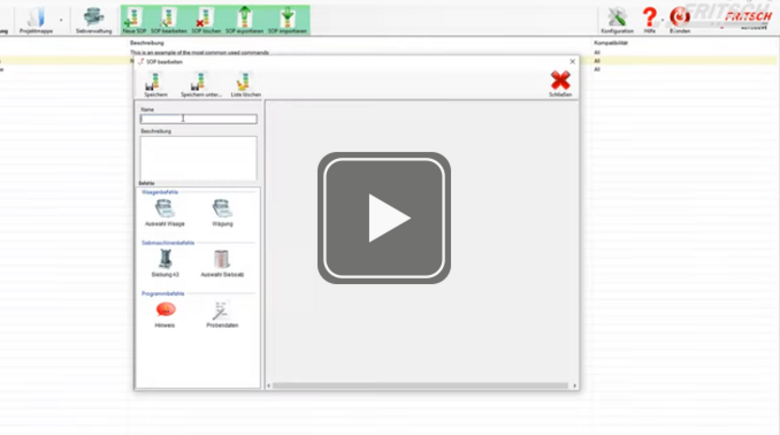

      ВИДЕО ПО ТЕХНИЧЕСКОЙ ПОДДЕРЖКЕ: Working with the software AUTOSIEVE for the Vibratory Sieve Shaker ANALYSETTE 3 PRO

      ПРОСМОТР ВИДЕО

      Проспект просеивающих Software AUTOSIEVE

      DOWNLOAD SOFTWARE AUTOSIEVE

      Just login. If you don't have a login yet - just register yourself. Afterwards you can download the software on this page.
