    PULVERISETTE 19 - 50–700 rpm for powerful gentle comminution

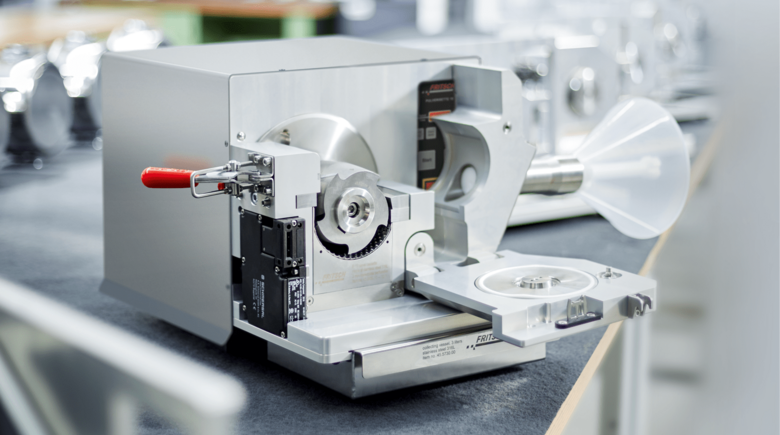

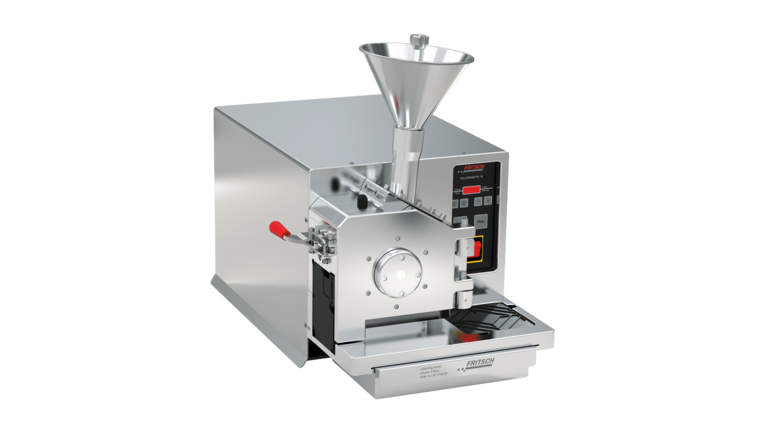

    The Universal Cutting Mill PULVERISETTE 19 with variable rotational speed 500-700 rpm is ideal for the powerful comminution of hard, tough-elastic and temperature-sensitive materials with a maximum feed size of 70 x 80 mm and a throughput of 60 l/h.

  • Advantages
    • Especially for the analytical sector, the food and pharmaceutical industry
    • Completely designed in stainless steel 316L – corrosion-resistant
    • Particularly resistant to alkalis and acids Easy operation and cleaning
    • Materials conform to the guidelines of the food and pharmaceutical industry
    • Ideal for combining with the new FRITSCH high-performance Cyclone separators and small volume Cyclone separator
  • Versions

    The following voltages are available:

    Order no. 19.3140.00for 380-460 V/3~, 50/60 Hz, 2800 watt, 67 Nm
    Order no. 19.3100.00for 200-240 V/1~, 50/60 Hz, 2350 watt, 26 Nm
    Order no. 19.3110.00for 100-120 V/1~, 50/60 Hz, 1725 watt, 24 Nm
  • EQUIPMENT / ACCESSORIES

    Configure your Universal Cutting Mill PULVERISETTE 19 exactly to your specific application

    The Universal Cutting Mill PULVERISETTE 19 is delivered without funnel, cutting tool set (consisting of rotors and fixed knives), sieve cassette, collection vessel and stands.
    For applications in the food, analytical sector and pharmaceutical industry we especially recommend the following accessories:
    19.1559.00 - Funnel for long- and bulk solids made in a corrosion-resistant stainless steel version 316L
    45.5192.00 - Rotor with notched edges and fixed knives made of hardened steel
    45.5185.00 - Rotor with straight cutting edges and fixed knives made of hardened, stainless steel

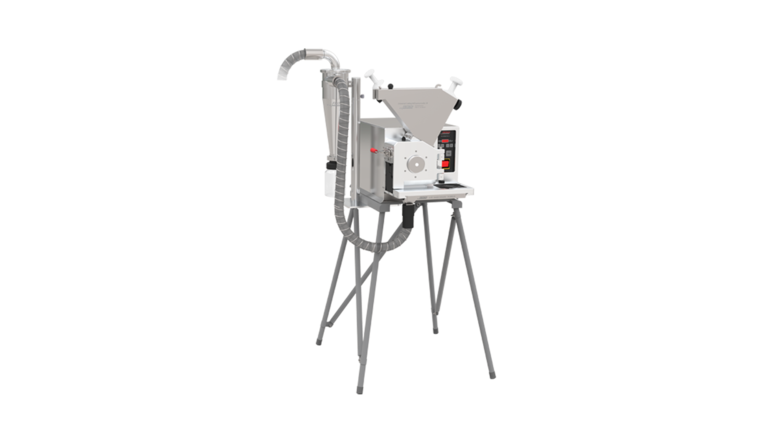

    19.1900.00 - High-performance Cyclone separator made of stainless steel 304 with flexible tube connection
    19.1940.00 - High-performance Cyclone separator with solid piping made of stainless steel 304 in combination with the stand with wheels 45.5800.00
    Collecting vessels for high performance Cyclone separators
    45.5829.00 - Stand cpl. welded, electrochemically polished made of stainless steel 316L
    As well as collecting vessels and various sieve cassettes made of stainless steel 316L.

    Please note, that you can use all the accessories for the Universal Cutting Mills PULVERISETTE 19 also for the corrosion-resistant stainless steel version 316L.
