ДРУГИЕ ПРИБОРЫ ИЗМЕРЕНИЯ РАЗМЕРА ЧАСТИЦ




Прибор для измерения размера частиц

ANALYSETTE 28

ImageSizer

№ для заказа
28.2000.00
Принадлежности

ANALYSETTE 28 ImageSizer поставляется с компьютером*, на котором уже полностью инсталлировано ПО ImageSizing ISS.

*Исключение при поставке в страны СНГ

Выбирайте в зависимости от задачи измерения сухое или влажное измерение!
Для сухого измерения закажите линзы в соответствии с желаемым диапазоном измерения. Для мокрого измерения выберите один из мокрых дисперсионных блоков, линзы в соответствии с желаемым диапазоном измерения и, при необходимости, ультразвуковую коробку отдельно.

Репрезентативная подготовка проб - основа любого точного анализа мы рекомендуем:
ротационный делитель проб LABORETTE 27

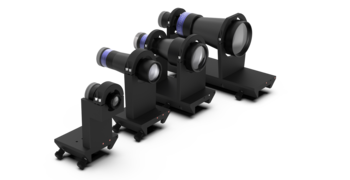

Телецентрический объектив с держателем

Fritsch telecentric lenses for Particle Sizer Anaysette 28

В зависимости от задачи выбрать подходящий объектив!

При использовании ANALYSETTE 28 ImageSizer потребуется по меньшей мере один телецентрический объектив. На выбор имеется три телецентрических объектива на разные диапазоны измерений. Заказывать нужные объективы исходя из требуемых измерений. Все они в любое время могут быть модернизированы, и их легко заменить.

ВЫБЕРИТЕ Телецентрические объективы

Задачи с держателем, питателем и воронкой для образца

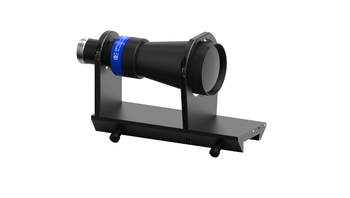

telecentric lens enlargement 0.157x
№ 28.2060.00
telecentric lens enlargement 0.157x

Telecentric lens enlargement 0.157x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 90 µm – 20 mm, depth of field ~ 27 mm), for dry measurement of powders and bulk solids.

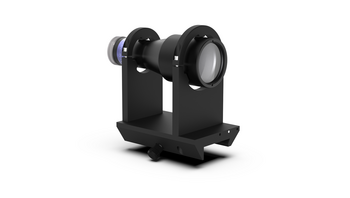

telecentric lens enlargement 0.243x
№ 28.2070.00
telecentric lens enlargement 0.243x

Telecentric lens enlargement 0.243x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 60 µm – 14.5 mm, depth of field ~ 11 mm), for dry measurement of powders and bulk solids.

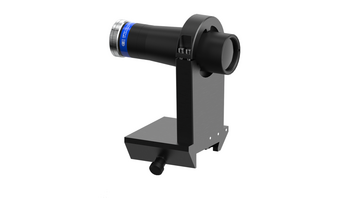

telecentric lens enlargement 0.35x
№ 28.2061.00
telecentric lens enlargement 0.35x

Telecentric lens enlargement 0.35x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 40 µm – 9 mm, depth of field ~ 5 mm), for dry measurement of powders and bulk solids.

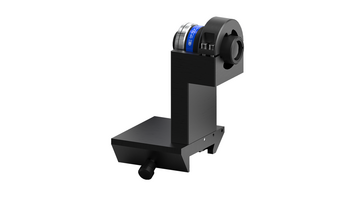

telecentric lens enlargement 0.735x
№ 28.2062.00
telecentric lens enlargement 0.735x

Telecentric lens enlargement 0.735x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 20 µm – 4.5 mm, depth of field ~ 1.2 mm), for dry measurement of powders and bulk solids.


Дисперсионные устройства и линзы для мокрого измерения суспензий и эмульсий

Wet dispersion unit for the Particle Sizer Analysette 28 ImageSizer for wet measurement

Выберите один прибор для мокрой дисперсии и в соответствии с вашей задачей измерения подходящую линзу и принадлежности!

Мокрая дисперсия особенно подходит для мелких частиц, плохо текучих, мелкоагломерирующих или липких материалов, которые не реагируют в воде или других жидкостях. Выберите ультразвуковой бокс, если вы часто измеряете материал образца, склонный к агломерации.

Пожалуйста, выберите устройство для мокрого диспергирования и принадлежности

Установки для мокрого диспергирования и ультразвуковой бокс

wet dispersion unit - suitable for many liquids
№ 28.2600.00
wet dispersion unit - suitable for many liquids

Wet dispersion unit incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for dispersion liquids like water, alcohol and many organic solvents.


A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.


All parts inside the wet dispersion unit, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP, POM, BK7 glass and FKM. The connection hoses and the drain hose are made of silicone.


If you are working with extremely aggressive chemical dispersion liquids, order the wet dispersion unit EXTENDED for extreme chemical resistance with article number 28.2700.00. A list providing an overview of chemicals can be downloaded here.


Read details about our wet dispersion unit


wet dispersion unit EXTENDED for extreme chemical resistance
№ 28.2700.00
wet dispersion unit EXTENDED for extreme chemical resistance

Wet dispersion unit EXTENDED incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for extremely aggressive chemical dispersion liquids.


A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.


All parts inside the wet dispersion unit EXTENDED, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP and BK7 glass. The connection hoses are made of silicone, inside of hoses made of FEP and the drain hose is made of TPE. For dispersion liquids, such as water, alcohol or most organic solvents, wet dispersion, article number 28.2600.00, is sufficient. A list providing an overview of chemicals can be downloaded here.


Read details about our wet dispersion unit


Ultrasonic box for 200-240 V/1~
№ 22.9270.00
Ultrasonic box for 200-240 V/1~

for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 200-240 V/1~, 50-60 Hz, 60 Watt


If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE  additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.


All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316Land FFKM.


Ultrasonic box for 100-120 V/1~
№ 22.9280.00
Ultrasonic box for 100-120 V/1~

for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 100-120 V/1~, 50-60 Hz, 60 Watt


If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.


All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316L and FFKM.


Cover sample bath for wet dispersion unit
№ 22.9515.00
Cover sample bath for wet dispersion unit

for covering the sample bath of the wet dispersion unit.


The cover provides safe splash protection during filling, dispersion and rinsing.

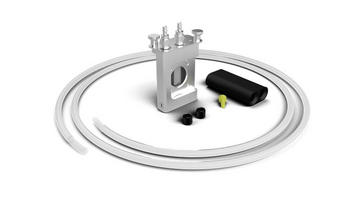

Connection kit for wet module
№ 28.2690.00
Connection kit for wet module

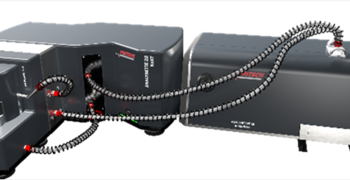

With the connection kit for the wet module, the A-28 and A-22 can be combined with each other.


Объективы с держателем

telecentric lens enlargement 0.35x
№ 28.2017.00
telecentric lens enlargement 0.35x

Telecentric lens enlargement 0.35x (measuring range ~ 20 µm – 3000 µm, depth of field ~ 5 mm), for wet measurement of suspensions and bulk emulsions.


Telecentric lens enlargement 0.735x
№ 28.2018.00
Telecentric lens enlargement 0.735x

Telecentric lens enlargement 0.735x (measuring range ~ 10 µm – 2000 µm, depth of field ~ 1.2 mm), for wet measurement of suspensions and bulk emulsions.


Telecentric lens enlargement 1.333x
№ 28.2501.00
Telecentric lens enlargement 1.333x

Telecentric lens enlargement 1.333x (measuring range ~ 5 µm – 1000 µm, depth of field ~ 0.5 mm), for wet measurement of suspensions and bulk emulsions.


Запчасти для блока диспергирования мокрого образца

Measuring cell glass 4 mm for flow measuring cell
№ 22.8566.26

Replacement measuring cell glass 4 mm for inserting into the flow measuring cell of the wet dispersion unit 28.2600.00.


Easy cleaning and exchange of the measuring cell
The measuring cell for the ANALYSETTE 28 ImageSizer is simply inserted from the front into the instrument as a practical cartridge and can be opened without tools with an eccentric lock. Its cleaning is quite convenient by an easily re-insertable outer seal. And also the exchange of the measuring cell glasses can be done any time completely uncomplicated.

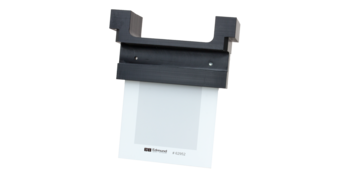

Принадлежности для калибровки

Для калибровки прибора измерения размера частиц ANALYSETTE 28 ImageSizer предлагаются две различных калибровочных панели. Пожалуйста, выберите соответствующую калибровочную панель в соответствии с применяемым объективом.

ВЫБЕРИТЕ КАЛИБРОВОЧНУЮ ПАНЕЛЬ

Калибровочные панели

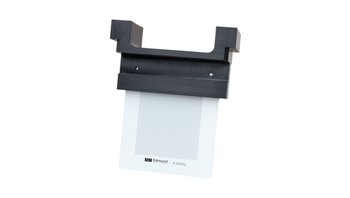

Calibration plate with 0.5 mm dots
№ 28.2224.00
Calibration plate with 0.5 mm dots

Calibration plate with 0.5 mm dots with certificate for telecentric lenses enlargement 0.157x, 0.243x and 0.35x.


Calibration plate with 0.125 mm dots
№ 28.2225.00
Calibration plate with 0.125 mm dots

Calibration plate with 0.125 mm dots with certificate for telecentric lenses enlargement 0.735x and 1.333x

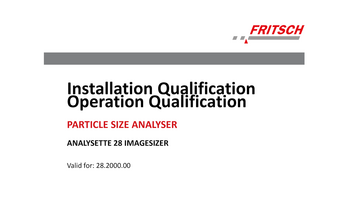

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0090.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Particle Sizer ANALYSETTE 28 ImageSizer.


№ для заказа
28.2000.00
