Быстроходная роторная мельница

PULVERISETTE 14

classic line

№ для заказа
14.5020.00
Принадлежности

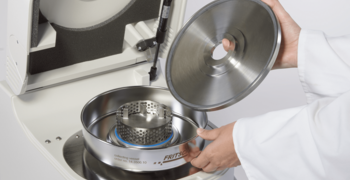

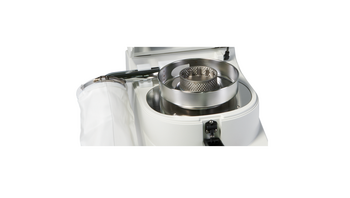

Центробежная мельница PULVERISETTE 14 classic line поставляется с приемником и крышкой.
Пожалуйста, обратите внимание: Для работы с быстроходной роторной мельницей PULVERISETTE 14, Вам понадобится ротор и как минимум одно кольцевое сито.

УДАРНЫЕ РОТОРЫ ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ

Руководство по выбору

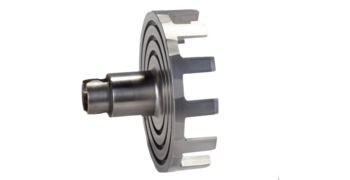

  • Ударные роторы

    быстрое измельчение волокнистых материалов Ударный ротор с 8 ребрами
    Начальные размеры частиц < 10 мм Ударный ротор с 12 ребрами
    Тонкоизмельченный материал меньше начального размера частиц 5 мм Ударный ротор с 24 ребрами

Допускающие большую нагрузку износостойкие ударные роторы PULVERISETE 14 classic line из нержавеющей стали предназначены для всех стандартных случаев применения с целью измельчения среднетвердых, мягких, хрупких, волокнистых материалов от извести до растений. Для различных задач измельчения имеются роторы с 8, 12 и 24 ребрами.

ВЫБЕРИТЕ УДАРНЫЙ РОТОР

УДАРНЫЕ РОТОРЫ ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ

with 8 ribs
№ 44.4080.10

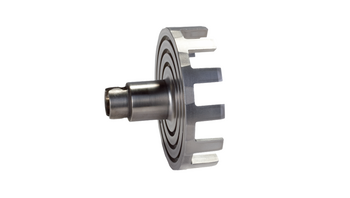

Impact rotor with 8 ribs

For fast, grinding of fibrous substances.

The following impact rotors made of stainless steel are offered:
12-rib rotor for the grinding of materials with feed particle sizes < 10 mm
24 rib rotor for the grinding of fine materials with feed particle sizes < 5 mm with highest air throughput


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data
with 12 ribs
№ 44.4120.10

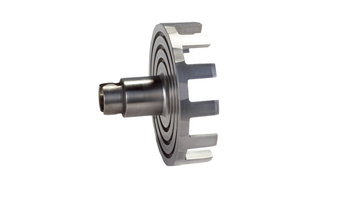

Impact rotor with 12 ribs

For the grinding of materials with feed particle sizes < 10 mm.


The following impact rotors made of stainless steel are available:
8-rib rotor for the fast grinding of fibrous substances
24-rib rotor: for the grinding of fine materials with feed particle sizes < 5 mm with highest air throughput


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data
with 24 ribs
№ 44.4240.10
Impact rotor with 24 ribs

For the grinding of fine materials with  feed particle sizes < 5 mm with highest air throughput.

The following impact rotors made of stainless steel are available:
8-rib rotor for the fast grinding of fibrous substances
12-rib rotor: for the grinding of samples with feed particle sizes of < 10 mm


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data

КОЛЬЦЕВЫЕ СИТА ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ 316L

Руководство по выбору

  • Кольцевые сита

    Быстрое измельчение колец от средней твердости до мягких Кольцо сита с трапецеидальнойперфорацией для получения дополнительного эффекта среза
    Быстрое измельчение хрупких материалов для достижения средней тонкости Кольцо сита с квадратной перфорацией
    для большей пропускной способности и меньшего количества остатков пробы благодаря большей, открытой поверхности сита

    Кольцо сита с круговой перфорацией
    для узкого диапазона размеров зерна

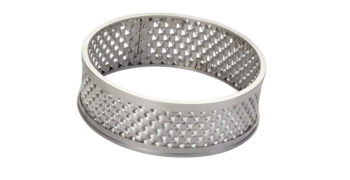

    Экстрим loads Sieve кольцо с армирующими кольцами

Допускающие большую нагрузку износостойкие кольцевые сита PULVERISETTE 14 classic line из нержавеющей стали предназначены для всех стандартных случаев применения с целью измельчения среднетвердых, мягких, хрупких, волокнистых материалов от извести до растений. Для различных задач измельчения имеются кольцевые сита с трапецеидальными, прямоугольник или круглыми отверстиями размером от 0,08 мм до 6 мм.

ВЫБЕРИТЕ КОЛЬЦЕВОЕ СИТО

КОЛЬЦЕВЫЕ СИТА ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ 316L

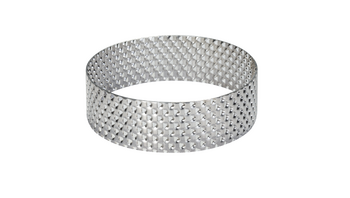

0.08 mm trapezoidal perforation
№ 44.1000.10

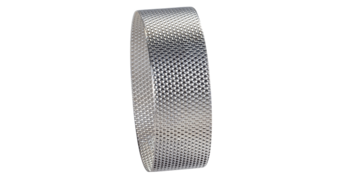

Sieve ring 0.08 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.

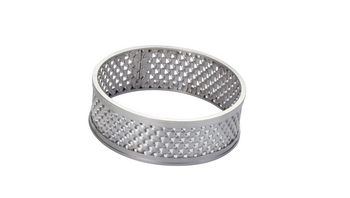

Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.12 mm trapezoidal perforation
№ 44.1010.10

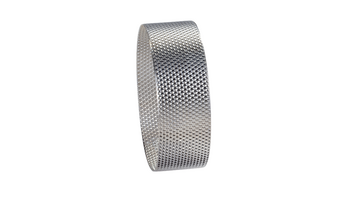

Sieve ring 0.12 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.2 mm trapezoidal perforation
№ 44.1020.10
Sieve ring 0.2 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
№ 44.1050.10
Sieve ring 0.5 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
№ 44.1080.10
Sieve ring 0.75 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
№ 44.1100.10
Sieve ring 1 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
№ 44.1150.10
Sieve ring 1.5 mm trapezoidal perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
№ 44.1200.10
Sieve ring 2 mm trapezoidal perforation made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm square perforation
№ 44.2201.10
Sieve ring 2 mm square perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm square perforation
№ 44.2401.10
Sieve ring 4 mm square perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with square perforation are recommended for the comminution of brittle materials for achieving medium fineness, but often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with round perforation are recommended for reduction of brittle materials for achieving medium fineness in a smaller grain band.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm square perforation
№ 44.2601.10
Sieve ring 6 mm square perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm round perforation
№ 44.2100.10
Sieve ring 1 mm round perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm round perforation
№ 44.2200.10
Sieve ring 2 mm round perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm round perforation
№ 44.2400.10
Sieve ring 4 mm round perforation, made of stainless steel

Sieve rings determine the final fineness of the sample. e.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm round perforation
№ 44.2600.10
Sieve ring 6 mm round perforation, made of stainless steel

Sieve rings determine the final fineness of the sample.
Sieve rings with round and square perforations are recommended for the comminution of brittle materials for achieving medium finenesses.
Sieve rings with round perforation achieve during comminution a smaller grain band.
Sieve rings with square perforation often achieve a higher throughput and the sample residue is less compared to sieve rings with round perforation.
Sieve rings with trapezoidal perforations are suitable for fast comminution of medium hard to soft materials and improve size reduction through extra shearing action.
Sieve rings with reinforced edges with trapezoidal perforation for heavy duty size reduction are also offered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

КОЛЬЦЕВЫЕ СИТА С УПРОЧНЕННЫМИ КРАЯМИ ДЛЯ ВЫСОКИХ НАГРУЗОК ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ 316L

Для особенно высоких нагрузок при измельчении материалов с повышенной твердостью предлагаются кольцевые сита с трапецеидальными отверстиями до 2 мм с дополнительными упрочненными краями.

ВЫБЕРИТЕ КОЛЬЦЕВЫЕ СИТА С УПРОЧНЕННЫМИ КРАЯМИ

КОЛЬЦЕВЫЕ СИТА С УПРОЧНЕННЫМИ КРАЯМИ ДЛЯ ВЫСОКИХ НАГРУЗОК ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ

0.08 mm trapezoidal perforation
№ 44.3000.10
Sieve ring 0.08 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.
Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.12 mm trapezoidal perforation
№ 44.3010.10
Sieve ring 0.12 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.2 mm trapezoidal perforation
№ 44.3020.10
Sieve ring 0.2 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
№ 44.3050.10
Sieve ring 0.5 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
№ 44.3080.10
Sieve ring 0.75 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
№ 44.3100.10
Sieve ring 1 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
№ 44.3150.10
Sieve ring 1.5 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
№ 44.3200.10
Sieve ring 2 mm trapezoidal perforation, made of stainless steel with reinforced edges

For heavy duty use.


Sieve rings determine the end fineness of the sample.
Sieve rings for heavy duty use with reinforced edges are offered with trapezoidal perforations.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ И ПОДГОТОВКИ ПРОБ БЕЗ ЗАГРЯЗНЕНИЯ ПРОБЫ ЧАСТИЦАМИ ТЯЖЕЛЫХ МЕТАЛЛОВ И ЖЕЛЕЗА СОГЛАСНО ROHS

Руководство по выбору

  • измельчения без тяжелых металлов и железа

    Для измельчения мягких материалов, например, листьев, злаков или мягких продуктов питания выберите дополнительно ударный ротор с 12 ребрами и кольцевое сито с упрочненными краями из чистого титана с подходящими отверстиями для желаемой конечной степени измельчения
    Для измельчения среднетвердых материалов, например, рис, дерево, кожа или полимеров выберите дополнительно кольцевое сито с покрытием TiN, а при начальном размере частиц < 10 мм - ротор с 12 ребрами с покрытием TiN, а при начальном размере частиц < 5 мм - ротор с 24 ребрами с покрытием TiN
    Для подготовки проб согласно RoHS
    Выберите кольцевое сито и ротор с покрытием TiN Для начального размера частиц < 10 мм используйте ротор с 12 ребрами, для начального размера частиц < 5 мм используйте ротор с 24 ребрами

Для измельчения без тяжелых металлов и железа и для подготовки проб согласно RoHS, закажите PULVERISETTE 14 classic line с крышкой и приемником с PTFE-покрытием, а также соответствующий ударный ротор и кольцевое сито.

ВЫБЕРИТЕ ПРИНАДЛЕЖНОСТИ

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ И ПОДГОТОВКИ ПРОБ БЕЗ ЗАГРЯЗНЕНИЯ ПРОБЫ ЧАСТИЦАМИ ТЯЖЕЛЫХ МЕТАЛЛОВ И ЖЕЛЕЗА СОГЛАСНО ROHS

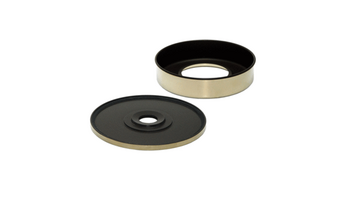

lid and collecting vessel PTFE-coated
№ 14.3750.00
Lid and collecting vessel PTFE-coated

Heavy-metal- and iron-free grinding
For both: heavy-metal-free and iron-free grinding you can order  your PULVERISETTE 14 classic line with a PTFE-coated lid and collecting vessel:
For grinding soft samples like leaves, grain and soft foods select additionally a 12-rib impact rotor and a sieve ring with reinforced edges made of pure titanium with a matching perforation for the desired final fineness.
For grinding medium-hard samples like rice, wood, leather or plastics select additionally a sieve ring TiN-coated and for feed particle sizes < 10 mm a 12-rib rotor and for feed particle sizes < 5 mm a 24-rib rotor TiN-coated.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore
impact rotor with 12 ribs, pure titanium
№ 44.4120.32
Impact rotor with 12 ribs, pure titanium

For heavy-metal- and iron-free grinding of soft materials such as leaves, grains and soft foods.


Order with the 12-ribs pure titanium impact rotor, a pure titanium sieve ring with reinforced edges, available with 0.2 mm, 0.5 mm, 1 mm and 2 mm trapezoidal perforations.
Also needed is a PTFE-coated lid and PTFE-coated collecting pan, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPure titanium – 3.7035 – Ti 2
ISO/EN/DIN codeDIN 17861
Chemical composition
ElementShare %
Titanium – Ti99.4 – 99.5
Oxygen – O0.18
Nitrogen – N0.05
Carbon – C0.06
Hydrogen – H0.013
Iron - Fe0.2
Physical and mechanical properties
Density4.5 g/cm³
Hardness / Brinell guide value HB 30150 Brinell hardness


Explanations on hardness data
sieve ring 0.2 mm trapezoidal perforation with reinforced edges, pure titanium
№ 44.3021.32
sieve ring  0.2 mm trapezoidal perforation with reinforced edges, pure titanium

For heavy duty loads for the heavy-metal-free and iron-free grinding of soft materials such as leaves, grains and soft foods.


Sieve rings determine the end fineness of the sample. Pure titanium sieve rings with reinforced edges for heavy duty loads are offered with trapezoidal perforations. Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings made of pure titanium with 0.5 mm,  1 mm and 2 mm trapezoidal perforation and an impact rotor with 12 ribs made of pure titanium can be ordered.
Also a PTFE-coated lid and collecting pan are available as a set (Order No. 14.3750.00).


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPure titanium – 3.7035 – Ti 2
ISO/EN/DIN codeDIN 17861
Chemical composition
ElementShare %
Titanium – Ti99.4 – 99.5
Oxygen – O0.18
Nitrogen – N0.05
Carbon – C0.06
Hydrogen – H0.013
Iron - Fe0.2
Physical and mechanical properties
Density4.5 g/cm³
Hardness / Brinell guide value HB 30150 Brinell hardness


Explanations on hardness data
sieve ring 0.5 mm trapezoidal perforation with reinforced edges, pure titanium
№ 44.3051.32
Sieve ring 0.5 mm trapezoidal perforation with reinforced edges, pure titanium

For heavy duty loads for the heavy-metal-free and iron-free grinding of soft materials such as leaves, grains and soft foods.


Sieve rings determine the end fineness of the sample. Pure titanium sieve rings with reinforced edges for heavy duty loads are offered with trapezoidal perforations. Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings made of pure titanium with 0.2 mm, 1 mm and 2 mm trapezoidal perforation and an impact rotor with 12 ribs made of pure titanium can be ordered.
Also a PTFE-coated lid and collecting pan are available as a set (Order No. 14.3750.00).








ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPure titanium – 3.7035 – Ti 2
ISO/EN/DIN codeDIN 17861
Chemical composition
ElementShare %
Titanium – Ti99.4 – 99.5
Oxygen – O0.18
Nitrogen – N0.05
Carbon – C0.06
Hydrogen – H0.013
Iron - Fe0.2
Physical and mechanical properties
Density4.5 g/cm³
Hardness / Brinell guide value HB 30150 Brinell hardness


Explanations on hardness data
sieve ring 1 mm trapezoidal perforation with reinforced edges, pure titanium
№ 44.3101.32
trapezoidal perforation with reinforced edges, pure titanium

For heavy duty loads for the heavy-metal-free and iron-free grinding of soft materials such as leaves, grains and soft foods.


Sieve rings determine the end fineness of the sample. Pure titanium sieve rings with reinforced edges for heavy duty loads are offered with trapezoidal perforations. Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings made of pure titanium with 0.2 mm, 0.5 mm and 2 mm trapezoidal perforation and an impact rotor with 12 ribs made of pure titanium can be ordered.
Also a PTFE-coated lid and collecting pan are available as a set (Order No. 14.3750.00).









ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPure titanium – 3.7035 – Ti 2
ISO/EN/DIN codeDIN 17861
Chemical composition
ElementShare %
Titanium – Ti99.4 – 99.5
Oxygen – O0.18
Nitrogen – N0.05
Carbon – C0.06
Hydrogen – H0.013
Iron - Fe0.2
Physical and mechanical properties
Density4.5 g/cm³
Hardness / Brinell guide value HB 30150 Brinell hardness


Explanations on hardness data
sieve ring 2 mm trapezoidal perforation with reinforced edges, pure titanium
№ 44.3201.32
sieve ring 2 mm trapezoidal perforation with reinforced edges, pure titanium

For heavy duty loads for the heavy-metal-free and iron-free grinding of soft materials such as leaves, grains and soft foods.


Sieve rings determine the end fineness of the sample. Pure titanium sieve rings with reinforced edges for heavy duty loads are offered with trapezoidal perforations. Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings made of pure titanium with 0.2 mm, 0.5 mm and 1 mm  trapezoidal perforation and an impact rotor with 12 ribs made of pure titanium can be ordered.
Also a PTFE-coated lid and collecting pan are available as a set (Order No. 14.3750.00).


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPure titanium – 3.7035 – Ti 2
ISO/EN/DIN codeDIN 17861
Chemical composition
ElementShare %
Titanium – Ti99.4 – 99.5
Oxygen – O0.18
Nitrogen – N0.05
Carbon – C0.06
Hydrogen – H0.013
Iron - Fe0.2
Physical and mechanical properties
Density4.5 g/cm³
Hardness / Brinell guide value HB 30150 Brinell hardness


Explanations on hardness data
impact rotor with 12 ribs, TiN-coated
№ 44.4120.00
Impact rotor with 12 ribs, TiN-coated

Heavy-metal- and iron-free grinding: For grinding medium-hard samples like rice, wood, leather or plastics for feed particle sizes < 10 mm.
Along with the TiN-coated 12-rib rotor, additionally select a sieve ring also TiN-coated (available with 0.12 mm, 0.2 mm, 0.5 mm und 1 mm trapezoidal perforation).
For feed particle sizes < 5 mm, a TiN-coated 24-rib rotor is available: order no. 44.4240.00.


RoHS: For sample preparation according to RoHS – such as for verification of hexavalent chromium, for feed particle sizes < 10 mm.
Select along with the TiN-coated 12 rib-rotor, a sieve ring also TiN-coated (available with 0.12 mm, 0.2 mm, 0.5 mm und 1 mm trapezoidal perforation).
For feed particle sizes < 5 mm, a TiN-coated 24-rib rotor is available: order no. 44.4240.00.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100
impact rotor with 24 ribs, TiN-coated
№ 44.4240.00
Impact rotor with 24 ribs, TiN-coated

Heavy-metal- and iron-free grinding: For grinding medium-hard samples like rice, wood, leather or plastics for feed particle sizes < 5 mm.
Along with the TiN-coated 24-rib rotor, additionally select a sieve ring also TiN-coated (available with 0.12 mm, 0.2 mm, 0.5 mm und 1 mm trapezoidal perforation).
For feed particle sizes < 10 mm, a TiN-coated 12-rib rotor is available: order no. 44.4120.00.


RoHS: For sample preparation according to RoHS – such as for verification of hexavalent chromium, for feed particle sizes < 5 mm.
Select along with the TiN-coated 24 rib-rotor, a sieve ring also TiN-coated (available with 0.12 mm, 0.2 mm, 0.5 mm und 1 mm trapezoidal perforation).
For feed particle sizes < 10 mm, a TiN-coated 12-rib rotor is available: order no. 44.4120.00.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100
sieve ring 0.12 mm trapezoidal perforation, TiN-coated
№ 44.1010.00
Sieve ring 0.12 mm trapezoidal perforation, TiN-coated

For heavy-metal and iron-free grinding of medium-hard materials such as rice, wood, leather or plastics and for sample preparation according to RoHS – such as for verification of hexavalent chromium.


Sieve rings determine the end fineness of the sample.
Sieve rings TiN-coated are offered with trapezoidal perforation. The trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings TiN-coated with 0.2 mm, 0.5 mm and 1 mm trapezoidal perforations and impact rotors with 12 and 24 ribs, TiN-coated can be ordered.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100
sieve ring 0.2 mm trapezoidal perforation, TiN-coated
№ 44.1020.00
Sieve ring 0.2 mm trapezoidal perforation, TiN-coated

For heavy-metal and iron-free grinding of medium-hard materials such as rice, wood, leather or Plastics and for sample preparation according to RoHS – such as for verification of hexavalent chromium.


Sieve rings determine the end fineness of the sample.
Sieve rings TiN-coated are offered with trapezoidal perforation. The trapezoidal perforations improve size reduction through extra shearing action.


Additionally, sieve rings TiN-coated with 0.12 mm, 0.5 mm and 1 mm trapezoidal perforations and impact  rotors with 12 and 24 ribs, TiN-coated can be ordered.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100
sieve ring 0.5 mm trapezoidal perforation, TiN-coated
№ 44.1050.00
Sieve ring 0.5 mm trapezoidal perforation, TiN-coated

For heavy-metal and iron-free grinding of medium-hard materials such as rice, wood, leather or Plastics and for sample preparation according to RoHS – such as for verification of hexavalent chromium.


Sieve rings determine the end fineness of the sample.
Sieve rings TiN-coated are offered with trapezoidal perforation.
The trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings TiN-coated with 0.12 mm, 0.2 mm and 1 mm trapezoidal perforations and impact rotors with 12 and 24 ribs, TiN-coated can be ordered.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100
sieve ring 1 mm trapezoidal perforation, TiN-coated
№ 44.1100.00
Sieve ring 1 mm trapezoidal perforation, TiN-coated

For heavy-metal and iron-free grinding of medium-hard materials such as rice, wood, leather or plastics.


Sieve rings determine the end fineness of the sample and for sample preparation according to RoHS – such as for verification of hexavalent chromium.
Sieve rings TiN-coated are offered with trapezoidal perforation. The trapezoidal perforations improve size reduction through extra shearing action.
Additionally, sieve rings TiN-coated with 0.12 mm, 0.2 mm and 0.5 mm trapezoidal perforations and impact  rotors with 12 and 24 ribs, TiN-coated can be ordered.


Please note: for heavy-metal-iron-free grinding and sample preparation according to RoHS, a PTFE-coated lid and collecting vessel are always required, order no. 14.3750.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTitanium nitride – TiN
ISO/EN/DIN code
Chemical composition
ElementShare %
Titanium nitride TiN100

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ ТРУДНОИЗМЕЛЬЧАЕМЫХ И ЧУВСТВИТЕЛЬНЫХ К ТЕМПЕРАТУРЕ ПРОБ

Ударное кольцо FRITSCH в комбинации с кольцевым ситом обеспечивает очень щадящее измельчение пробы. При этом ударное кольцо действует как статор, на котором дополнительно разбивается материал.
Идеальное решение для особо чувствительных к температуре материалов, таких как порошковые краски или полимеры, а также для беспроблемного предварительного и тонкого измельчения от твердо-хрупких до мягких материалов, содержащих жир или остаточную влажность проб. Соответствующий ротор и кольцевое сито для ударного кольца нужно заказывать отдельно.

ВЫБЕРИТЕ ПРИНАДЛЕЖНОСТИ

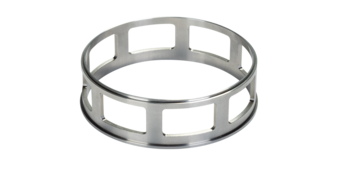

УДАРНОЕ КОЛЬЦО ДЛЯ ИЗМЕЛЬЧЕНИЯ ТРУДНОИЗМЕЛЬЧАЕМЫХ И ЧУВСТВИТЕЛЬНЫХ К ТЕМПЕРАТУРЕ ПРОБ

impact bar (impact rotor and special sieve ring are additionally necessary)
№ 44.1121.10

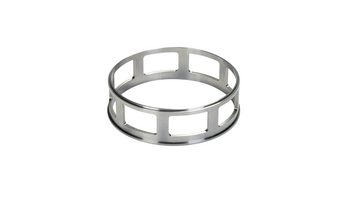

Impact bar made of stainless steel

For difficult-to-mill samples, temperature-sensitive samples and plastics


The impact bar enables together with a sieve ring a very gentle comminution of the sample. The bar acts as a stator on which the material is additionally beaten. The result: increased grinding performance for a particularly fast and effective grinding that minimises the thermal load. Ideal for especially heat-sensitive materials such as powder coatings or plastics as well as for smooth pre-crushing and fine comminution of hard-brittle to soft, fatty or samples with residual moisture.


(Please note: impact rotor and special sieve ring are additionally necessary!)


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data

КОЛЬЦЕВЫЕ СИТА ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ ДЛЯ УДАРНОГО КОЛЬЦА 316L

0.08 mm trapezoidal perforation
№ 44.1301.10
Sieve ring  0.08 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.12 mm trapezoidal perforation
№ 44.1311.10
Sieve ring 0.12 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.2 mm trapezoidal perforation
№ 44.1321.10
Sieve ring 0.2 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
№ 44.1351.10
Sieve ring  0.5 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
№ 44.1381.10
Sieve ring 0.75 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
№ 44.1401.10
Sieve ring  1 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
№ 44.1451.10
Sieve ring  1.5 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
№ 44.1501.10
Sieve ring 2 mm trapezoidal perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.
Sieve rings with round perforations achieve medium fineness with small grain bands.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm round perforation
№ 44.1711.10
Sieve ring  1 mm round perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with round perforations achieve medium fineness with small grain bands.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm round perforation
№ 44.1721.10
Sieve ring  2 mm round perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with round perforations achieve medium fineness with small grain bands.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm round perforation
№ 44.1741.10
Sieve ring 4 mm round perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with round perforations achieve medium fineness with small grain bands.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm round perforation
№ 44.1761.10
Sieve ring  6 mm round perforation, made of stainless steel for impact bar

- special sieve ring and only for the use together with the impact bar -
Sieve rings determine the end fineness of the sample.
Sieve rings with trapezoidal perforations and round perforations are available.
Sieve rings with round perforations achieve medium fineness with small grain bands.
Sieve rings with trapezoidal perforations improve size reduction through extra shearing action.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ БЕЗ СИТА

Для измельчения без сита самых сложных, среднетвердых, содержащих масло или жир материалов, например, восков или парафинов, Вам необходим штыревой ротор и подходящая к нему крышка камеры дробления со штыревой вставкой.

ВЫБЕРИТЕ ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ БЕЗ СИТА

ШТЫРЕВАЯ ВСТАВКА ДЛЯ ИЗМЕЛЬЧЕНИЯ БЕЗ СИТА

pin insert
№ 14.2600.00
Pin insert

consisting of pin rotor and grinding chamber lid with pin insert.


For grinding without a sieve for the most difficult, medium-hard, oil or grease containing materials such as waxes or paraffins.


To discharge and collect large quantities which need to be ground use the conversion kit for grinding large quantities.


ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ БОЛЬШИХ КОЛИЧЕСТВ

Независимо от специфической конфигурации с ротором, кольцевыми ситами, ударным кольцом или штыревой вставкой, специальный комплект переналадки позволит Вам измельчать большие количества. Он позволяет измельчать вплоть до 1 л проб за один проход без необходимости открывать камеру дробления и опустошать приемный поддон.

ВЫБЕРИТЕ ПРИНАДЛЕЖНОСТИ

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ БОЛЬШИХ КОЛИЧЕСТВ

conversion kit for grinding large quantities
№ 14.3510.00
Conversion kit for grinding large quantities

consisting of pan with outlet and flange-mount nylon support sack (outside) for the paper filter bag (inside).


Regardless of the specific configuration of rotor, sieve rings, impact bar or pin insert, the PULVERISETTE 14 is capable of grinding of large quantities with the special conversion kit: Consisting of a special collecting vessel with outlet and flange-mount nylon support sack for easily replaceable paper filter bags. This allows the comminution of sample quantities of up to 1 litre in a single step without the need to open the grinding chamber and empty the collecting pan during the process.


Our suggestion: During grinding of very light materials, the material yield can be significantly improved by the high air circulation of the conversion kit for grinding large quantities – even when grinding smaller quantities!


 Another suggestion: During grinding of temperature-sensitive samples, the conversion kit for grinding large quantities with its large nylon support sack ensures a high air throughput, resulting in even better cooling.


set filter bags for conversion kit
№ 83.0010.00
Set of  paper filter bags for conversion kit

Set of paper filter bags for conversion kit for grinding large quantities


Set = 20 pieces paper filter bags


ПРИНАДЛЕЖНОСТИ ДЛЯ ВЫВОДА ПРОБЫ С ЦИКЛОНОМ

Комбинация быстроходной роторной мельницы PULVERISETTE 14 classic line с циклонным сепаратором FRITSCH является идеальным решением для особенно тонкого измельчения чувствительных к температуре материалов, таких как порошковые краски или полимеры, или для беспроблемного предварительного и тонкого измельчения от твердо-хрупких до мягких материалов, содержащих жир или остаточную влажность проб.
Предлагаются две модели, в зависимости от конкретного применения: Высокопроизводительный циклонный сепаратор и компактный циклонный сепаратор для малого объема материалов.

ПРИНАДЛЕЖНОСТИ ДЛЯ ВЫВОДА ПРОБЫ С ЦИКЛОНОМ

ВЫБЕРИТЕ ПРИНАДЛЕЖНОСТИ ДЛЯ ВЫВОДА ПРОБЫ С ЦИКЛОНОМ

high-performance Cyclone separator, stainless steel 304, foodGrade, incl. sample glass 1 litre
№ 14.3767.00
high-performance Cyclone separator, stainless steel 304, foodGrade, incl. sample glass 1 litre

The compact FRITSCH high-performance Cyclone separator, which is made completely out of stainless steel 304, is particularly indispensable in the analytical sector and the food and pharmaceutical industries. Due to its high surface quality, it offers enhanced resistance to corrosive media such as alkalis and acids, but particularly to media containing chlorides – and is especially easy to clean with a wide range of possible cleaning agents, without leaving any residues. The Cyclone separator can also be fully dismantled, meaning that it can be completely emptied, flooded and sterilised.
Your advantage: reliable protection against cross-contamination.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data
sample glass 1 litre
№ 83.3250.00
Sample glass 1 litre

Sample glass 1 litre for sample exhaustion with the high-performance Cyclone separator.


sample glass 2 litres
№ 83.3260.00
Sample glass 2 litres

The sample glass with 2 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


sample glass 5 litres
№ 83.3270.00
Sample glass 5 litres

The sample glass with 5 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


Циклонный сепаратор малой емкости и аксессуары

small volume Cyclone separator made of plastic
№ 14.3770.00
small volume Cyclone separator made of plastic

Small volume Cyclone separator made of plastic for sample exhaustion of small sample quantities, incl. 250 ml sample glass.
We designed the compact FRITSCH small volume Cyclone separator especially for exhaustion of small sample quantities. It is made of plastic, can be dismantled completely and cleaned in a dishwasher for reliably preventing contaminations.
The comminuted sample is collected in a 250 ml sample glass, in which it can also be transported and stored. Alternatively a sample glass 500 ml can also be screwed-on and ordered: order no. 27.1460.00.
The small volume Cyclone separator can be combined with the exhaust system order no. 43.9070.00 or can also be used with the supplied fine-dust filter 80-100 µm for passive utilisation. Replacement fine-dust-filters 80-100 µm can be reordered: order no. 45.8218.16.


Replacement fine-dust filter 80 - 100 µm
№ 45.8218.16

Replacement fine-dust filter 80-100 µm for small volume Cyclone separator for passive utilisation.


Replacement fine-dust filter 35 - 40 µm
№ 45.8219.16

Replacement fine-dust filter 35 – 40 μm for small volume Cyclone separator for passive utilisation.


Sample glass 500 ml
№ 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Sample glass 250 ml
№ 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Вытяжное устройство и Принадлежности для высокопроизводительного циклонного сепаратора и циклонного сепаратора малой емкости

dust exhaust system, dust category „M” according to DIN EN 60335-2-69
№ 43.9070.00
Exhaust system, dust category "M" according to DIN EN 60335-2-69

The exhaust system, dust category "M" according to DIN EN 60335-2-69 for 230 V/1~, 50/60 Hz, 1600 Watt is versatile:


For combination with the high performance and small volume cyclones.
To operate the FRITSCH Cyclones you need an exhaust system. The strong airflow ensures simple feeding, increases throughput, and reduces the thermal load of the samples. The high performance and small volume Cyclone separator can be combined with Universal Cutting Mills PULVERISETTE 19, the Variable Speed Rotor Mill PULVERISETTE 14 premium line and classic line. The small volume cyclone can also be combined with the Variable Speed Rotor Mill PULVERISETE 14 premium line and classic line even for passive utilisation – without sample exhaust.
The high-performance cyclone is ideal for combination with the Universal Cutting Mills PULVERISETTE 19 large, the Cross Beater Mill PULVERISETTE 16 and the Disk Mill PULVERISETTE 13 premium line for optimal sample extraction and for comminution of larger quantities.


For cooling of the Variable Speed Rotor Mill PULVERISETTE 14 premium line
By connecting the exhaust system with the connecting piece order no. 14.4214.00, the cooling of the mill can easily be enhanced.


For connecting to Disk Mill PULVERISETTE 13 premium line
The exhaust is simply connected to the PULVERISETTE 13 premium line and operated via a start and stop button on the instrument – for dust free comminution.


For connecting to the Jaw Crusher PULVERISETTE 1, Modell I + II classic line
Simply connect the exhaust system to the integrated connection of the PULVERISETTE 1. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For connecting to the Disk Mill PULVERISETTE 13 classic line
The exhaust system can be easily connected to the PULVERISETTE 13 classic line. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For exhaustion of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT
An exhaust system is necessary to ensure automatic sample exhaustion during dry measurement. When the measurement is completed it can also be easily used to manually clean the feeder.


Please note that the exhaust system article no. 43.9070.00, is not equipped with a fine filter and therefore dust may escape. Please consider the valid occupational health and safety regulations. This exhaust system is mostly recommended for dust-free grinding and the vacuuming of during the process developing fine dust in the upper part of the grinding chamber and for the cleaning of the grinding parts.


For vacuuming of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT, we recommended we recommend the exhaust system article no. 43.9060.00, which is equipped with a hose and an ultra-fine filter of dust class "H" according to DIN EN 60335-2-69, so that the escape of fine dust is reduced.


fleece filter bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
№ 43.9055.00

1 pack = 5 pieces
One pack is included in the scope of delivery of the exhaust system (article No. 43.9070.00).
These fleece filter bags should be used for the vacuuming off of fine, dry materials.
For the vacuuming off of coarse, wet materials are plastic bags available (article no. 43.9052.00).


plastic bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
№ 43.9052.00

1 pack = 5 pieces

One pack is included in the order of the exhaust system (article No. 43.9070.00).
These plastic bags should be used for the vacuuming off of coarse, wet materials.
For the vacuuming off of fine, dry materials are paper filter bags available (article no. 43.9055.00).


СЕРТИФИКАЦИЯ

Бланк для самостоятельного выполнения для поддержки квалификации устройства в системе управления качеством для быстроходной роторной мельницы PULVERISETTE 14 classic line.

Выбрать сертификацию

Сертификация

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0230.00
IQ/OQ documentation (questionnaire format - implementation not included)

IQ/OQ documentation (questionnaire format - implementation not included)
for the independent utilization for the support of instrument qualification in the quality management system for the Variable-Speed Rotor Mill Rotor PULVERISETTE 14 classic line.


ПРИНАДЛЕЖНОСТИ ДЛЯ АВТОМАТИЧЕСКОЙ ПОДАЧИ

Для контролируемой подачи проб даже самых маленьких количеств материала во время общего процесса измельчения, PULVERISETTE 14 classic line может комбинироваться с вибрационным лотковым питателем LABORETTE 24. При этом, благодаря прямому соединению, мельница автоматически регулирует подачу пробы согласно своей нагрузке в данный момент.

выберите принадлежности для автоматической подачи проб

ПРИНАДЛЕЖНОСТИ ДЛЯ АВТОМАТИЧЕСКОЙ ПОДАЧИ

Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~
№ 24.0030.00
Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 200-240 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


Vibratory Feeder LABORETTE 24 with V-shaped channel, 100-120 V/1~
№ 24.0040.00
Vibratory Feeder LABORETTE 24 with V-shaped channel,100-120 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 100-120 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


stand for Vibratory Feeder LABORETTE 24
№ 24.9100.00
Stand for Vibratory Feeder LABORETTE 24

solid stand - height adjustable, rotatable, stable


IQ/OQ documentation (questionnaire format – implementation by customer)
№ 96.0370.00
IQ/OQ documentation (questionnaire format – implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibratory Feeder LABORETTE 24.


№ для заказа
14.5020.00
Sales Consultant Particle Sizing
M.Sc. (Phys.) Maik Paluga
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Телефон +49 67 84 70 188
Моб. телефон +49 151 40 48 38 41
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Телефон +49 67 84 70 0
ИСПЫТАТЬ СЕЙЧАС

БЕСПЛАТНЫЙ АНАЛИЗ ЧАСТИЦ

Пришлите нам свою пробу, и мы выполним тестовый анализ частиц - вы получите индивидуальный протокол анализа частиц.

База данных протоколов измерений
