ДРУГИЕ ГРУППЫ ИЗДЕЛИЙ




Ротационный конусный делитель проб

LABORETTE 27

№ для заказа
27.1420.00
Принадлежности

Пожалуйста, обратите внимание: Для этого делителя проб FRITSCH Вам понадобится делительная головка, предлагаемая с различными соотношениями деления (1:8,1:10,1:30) и из различных материалов.
Мы поставляем делительные головки и специальные воронки для подачи любого материала.
Стаканы для проб предлагаются в различных размерах.

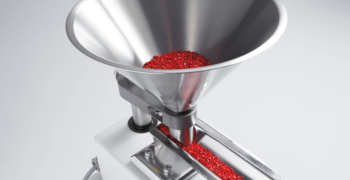

Для автоматической подачи скомбинируйте Ваш ротационный конусный делитель проб с:

Вибрационный лотковый питатель FRITSCH LABORETTE 24

быстроходной роторной мельнице FRITSCH PULVERISETTE 14 CLASSIC LINE

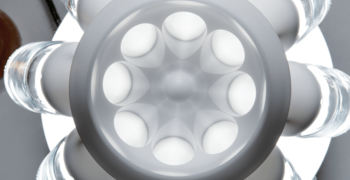

Делительные головки, вкл. стаканы для проб и воронки

Руководство по выбору

  • Обзор делительных головок LABORETTE 27

    Соотношение деления Деление 1:8 Деление 1:10 Деление 1:30
    Материалы Полимер РОМ или алюминий Полимер РОМ или алюминий Полимер РОМ или алюминий с покрытием
    Количество долей 8 10 3
    Макс. начальный размер частиц 10 мм 10 мм 2,5 мм
    Макс. количество пробы 4 000 мл 2 500 мл 300 мл
    Деление в сухой/жидкой среде в сухой/жидкой среде в сухой/жидкой среде в сухой/жидкой среде
    Полезный объем стаканов для проб 32, 250, 500 мл 32, 250 мл 15, 20, 30 мл
  • Дополнительная информация

    Резьба стакана GL 55, другие резьбы для Ваших собственных стаканов для проб по запросу.

Предлагаются делительные головки с соотношением деления 1:8; 1:10 или 1:30 из прочного полимера полиоксиметилен (POM). Для материалов и суспензий с абразивными свойствами используются делительные головки 1:8 и 1:10 из анодированного алюминия. Для особенно агрессивных твердых веществ и суспензий имеется делительная головка 1:30 с покрытием PTFE.

Выберите делительные головки

Соотношение деления 1:8

made of POM plastic
№ 27.1300.00

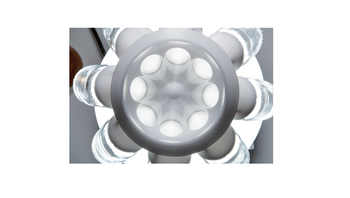

Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.1150.00) for the division of materials and suspensions, which produce abrasion at the surface.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
№ 27.1150.00
Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.1300.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Соотношение деления 1:10

made of POM plastic
№ 27.5150.00

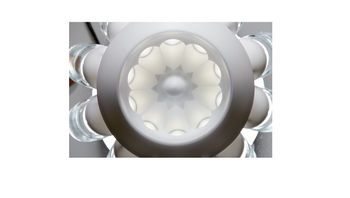

Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10 Max.
Permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.4150.00) for the division of materials and suspensions, which produce abrasion at the surface.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
№ 27.4150.00
Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10
Max. permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.5150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Соотношение деления 1:30

made of POM plastic
№ 27.6150.00

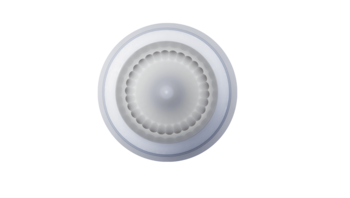

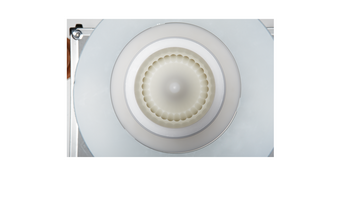

Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: The dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in PTFE coated aluminium (article no. 27.2150.00) for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of PTFE coated aluminium
№ 27.2150.00

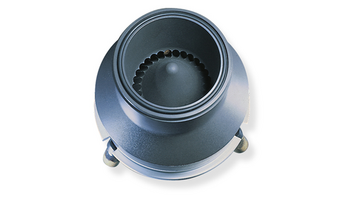

Dividing head made of PTFE coated aluminium

PTFE coated aluminium is recommended for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: This dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in POM plastics (article no. 27.6150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

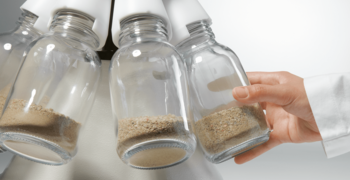

Стаканы для проб

Стаканы для проб предлагаются в различных размерах от 15 мл до 500 мл. Также поставляются специально разработанные полимерные вставки с объемом 32 мл для применения в 250 мл и 500 мл стаканах для проб для минимальных количеств.

Выберите стаканы для проб

Стаканы для проб

Sample glass 250 ml
№ 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Sample glass 500 ml
№ 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Sample vessel 32 ml
№ 83.3190.16
Sample vessel 32 ml

Sample vessel 32 ml with lid for sample bottle 250 ml and 500 ml.


For dividing smallest sample quantities, this sample vessel 32 ml can be inserted in the sample bottles 250 ml (article-number 27.1450.00) and sample bottles 500 ml (article-number 27.1460.00).


sample bottle 30 ml
№ 83.3120.00
Sample bottle 30 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 20 ml
№ 83.3110.00
Sample bottle 20 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 15 ml
№ 83.3100.00
Sample bottle 15 ml

Sample bottle with lid can be used with dividing heads, division ratio 1:30.


Воронки

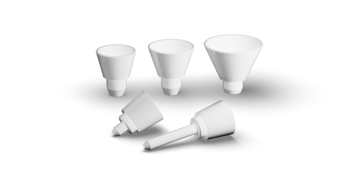

Каждая делительная головка LABORETTE 27 поставляется с воронкой с диаметром 10 мм, делительные головки с соотношением деления 1:30 дополнительно с воронкой 5 мм. Помимо этого есть воронки с диаметром 15 мм и 22 мм для оптимальной адаптации к соответствующему размеру частиц и специальные воронки для жидкостей.

Выберите соответствующую воронку

Воронки

5 mm dia.
№ 27.1290.16

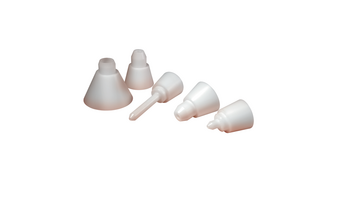

Funnel 5 mm dia. made of POM plastic

The funnel is also offered in 10, 15 and 22 mm dia. to suit the particle size of the sample being divided.
For the division of suspensions with dividing head, division ratio 1:30 a separate funnel, order no. 27.1330.16 is offered


5 mm dia. (only for division of suspensions with dividing head, division ratio 1:30)
№ 27.1330.16
Funnel 5 mm dia. made of POM plastic

For the division of suspensions with dividing head, division ratio 1:30

The funnel is also offered in 5, 10 and 15, 22 mm dia. to suit the particle size of the sample being divided.


10 mm dia.
№ 27.1200.16
Funnel 10 mm dia. made of POM plastic

The funnel is also offered in 5, 15 and 22 mm dia. to suit the particle size of the sample being divided.


15 mm dia.
№ 27.1210.16

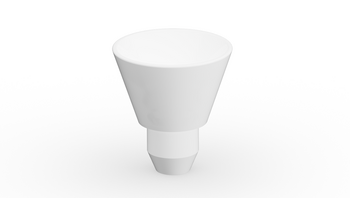

Funnel 15 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 22 mm dia. to suit the particle size of the sample being divided.


22 mm dia.
№ 27.1220.16

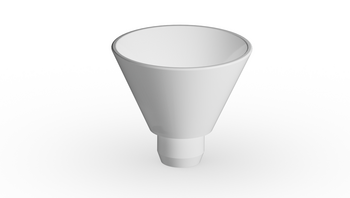

Funnel 22 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 15 mm dia. to suit the particle size of the sample being divided.


Дополнительные принадлежности

Защитное устройство, предотвращающее прямой контакт с вращающейся делительной головкой. Для Ротационного конусного делителя проб предлагаются асессуары для автоматической подачи пробы, а также его сертификация

Выберите Дополнительные принадлежности

Предохранительное устройство

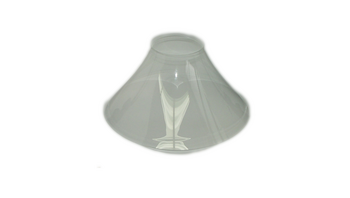

protective device, polyacryl
№ 27.1500.17
Protective device

Made of colourless polyacryl, prevents direct contact with the turning dividing head.


Сертификация

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0380.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Rotary Cone Sample Divider PULVERISETTE 27.


ПРИНАДЛЕЖНОСТИ ДЛЯ АВТОМАТИЧЕСКОЙ ПОДАЧИ

Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~
№ 24.0030.00
Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 200-240 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


Vibratory Feeder LABORETTE 24 with V-shaped channel, 100-120 V/1~
№ 24.0040.00
Vibratory Feeder LABORETTE 24 with V-shaped channel,100-120 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 100-120 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


stand for Vibratory Feeder LABORETTE 24
№ 24.9100.00
Stand for Vibratory Feeder LABORETTE 24

solid stand - height adjustable, rotatable, stable


IQ/OQ documentation (questionnaire format – implementation by customer)
№ 96.0370.00
IQ/OQ documentation (questionnaire format – implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibratory Feeder LABORETTE 24.


№ для заказа
27.1420.00
