Планетарная мельница

PULVERISETTE 5

premium line

№ для заказа
05.7020.00
Принадлежности

Пожалуйста, обратите внимание: Для планетарной мельницы PULVERISETTE 5 premium line Вам понадобится еще как минимум 2 размольных стакана на ваш выбор и соответствующее количество размольных шаров. К тому же материал размольного стакана должен быть тверже, чем измельчаемый материал. Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения можно применять размольные стаканы большего размера или массы и размольные шары более высокой плотности и таким образом с большей ударной энергией. Пожалуйста, учитывайте полезный объем, он не идентичен с объемом стакана!

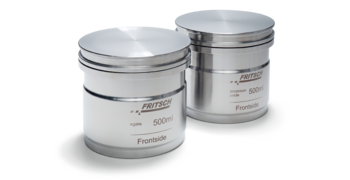

РАЗМОЛЬНЫЙ СТАКАН

Руководство по выбору

  • Данные по материалам для размольных стаканов/шаров

    Материал Основной компонент материала Плотность г/см³ Износостойкость Применение для измельчаемого материала
    Агат SiO2 2,65 хорошо мягкие пробы до средней твердости
    Оксид циркония ZrO2 5,7 очень хорошо волокнистые, абразивные пробы
    Закаленная, нержавеющая сталь Fe - Cr 7,7 хорошо твердые, средней твердости , хрупкие пробы
    Твердый сплав карбид вольфрама WC 14,3 очень хорошо твердые, абразивные пробы

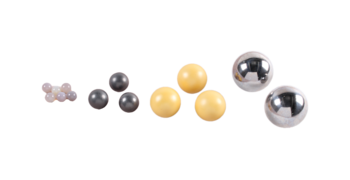

  • Рекомендуемое количество шаров на размольный стакан

    Размольные шары ≥ 5 мм
    Рекомендуемое количество шаров на размольный стакан
    Размольный стакан/
    полезный объем (измельчаемый материал)
    125 мл
    15 – 50 мл
    150 мл
    20 – 70 мл
    250 мл
    30 – 125 мл
    420 мл
    60 – 200 мл
    500 мл
    80 – 225 мл
    Шары Ø
    20 мм 9 12 15 20 25
    15 мм 25 35 45 60 70
    10 мм 35 40 50 80 100
    5 мм 600 900 1200 1800 2000
    Размольные шары ≤ 3 мм
    Рекомендуемая навеска шаров на размольный стакан в граммах
    Размольный стакан/
    полезный объем (измельчаемый материал)
    150 мл
    20 – 70 мл
    250 мл
    30 - 125 мл
    500 мл
    80 – 225 мл
    Материал
    Оксид циркония 170 г 400 г 800 г
    Нержавеющая сталь / закаленная сталь 350 г 500 г 1100 г
    Твердый сплав карбид вольфрама 800 г 1000 г 2100 г
  • Дополнительная информация

    Размольные шары с диаметром 3 мм и меньше нужно взвешивать. Приведенная выше таблица содержит указания по необходимой навеске на размольный стакан.

    Количество размольных шаров может быть уменьшено на вплоть до 15 %, однако тогда нужно считаться с повышенным износом. Указанное наполнение шарами на стакан является минимальным количеством; в зависимости от поведения материала, его, возможно, следует увеличить.

    Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения размольные стаканы и шары высокой плотности и таким образом с большей ударной энергией.

Выберите не менее 2-х размольных стаканов в соответствии с вашим объемом проб, предлагаемых в размерах 500 мл, 250 мл и 160 мл. Подробности по полезному объему указаны в руководстве по выбору. Все размольные стаканы FRITSCH premium line имеют оболочку из нержавеющей стали, имеют маркировку и одинаковый внутренний диаметр – независимо от их емкости.
Для достижения наилучших результатов измельчения все размольные стаканы предлагаются в исполнении из 4 различных материалов. Это позволяет целенаправленно избегать загрязнения проб нежелательной стружкой.

ВЫБЕРИТЕ ОБЪЕМ РАЗМОЛЬНОГО СТАКАНА

Размольный стакан ОБЪЕМОМ 500 МЛ

agate - SiO2 - with steel casing
№ 50.6400.00
agate with steel casing, 420 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 420 ml
Useful capacity: 60 … 200 ml
Weight net: 2.700 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.6490.00
zirconium oxide with steel casing, 500 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 3.700 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 50.6550.00
hardened, stainless steel, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 4.800 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.6580.00
hardmetal tungsten carbide with steel casing, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 6.500 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Размольный стакан ОБЪЕМОМ 250 МЛ

agate - SiO2 - with steel casing
№ 50.6610.00
agate with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 3.400 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.6700.00
zirconium oxide with steel casing, 250 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.200 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
№ 50.6760.00
hardened, stainless steel with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.600 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.6790.00
hardmetal tungsten carbide with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 6.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Размольный стакан ОБЪЕМОМ 160 МЛ

agate - SiO2 - with steel casing
№ 50.6840.00
agate with steel casing, 125 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 125 ml
Useful capacity: 15 … 50 ml
Weight net: 1.970 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.6900.00
zirconium oxide with steel casing, 150 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.500 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 50.6920.00
hardened, stainless steel, 150 ml volume for PULVERISETTE 5<i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.850 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.6940.00
hardmetal tungsten carbide with steel casing, 150 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 4.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

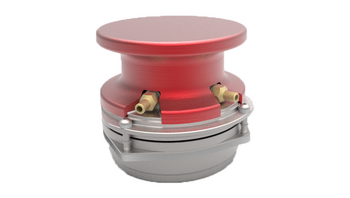

Adapter for all Grinding Bowls PULVERISETTE 5 premium line 125-150 ml volume
№ 50.6837.00
for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Adapter for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume, essential for weight compensation, if only one grinding bowl is inserted in the grinding bowl holder.

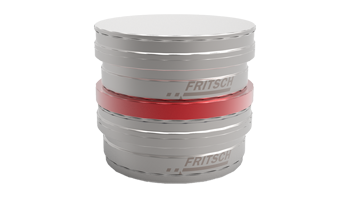

Stacking ring for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume
№ 50.6830.00
for grinding bowls PULVERISETTE 5 <i>premium line</i>

Essential, if 2 grinding bowls 125-150 ml volume per grinding bowl holder are used.


If you would like to grind four samples simultaneously, simply order four grinding bowls, each with 125-150 volume and 2 stacking rings.


АКСЕССУАРЫ ДЛЯ ВСЕХ РАЗМОЛЬНЫХ СТАКАНОВ PULVERISETTE 5 PREMIUM LINE

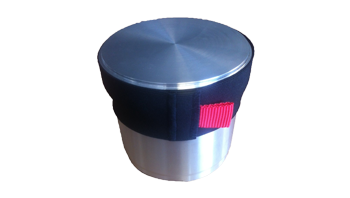

replacement grinding bowl seal tape
№ 50.6980.24
replacement grinding bowl seal tape

Replacement grinding bowl seal tape for all grinding bowls premium line 125-500 ml volume.

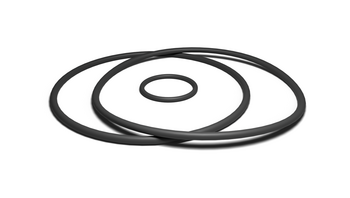

Replacement seal ring Viton 88.49 x 3.53 for premium line grinding bowls 125-150 ml volume
№ 84.0163.15

Replacement seal ring Viton 88.49 x 3.53 mm for  premium line grinding bowls  125-150 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data
replacement seal ring Viton 88 x 4 mm for premium line grinding bowls 250-500 ml volume
№ 84.0164.15

Replacement seal ring Viton 88 x 4 mm for  premium line grinding bowls 250-500 volume, all gassing lids for premium line grinding bowls 125-500 ml volume and all EASY GTM grinding bowls 250 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ

Руководство по выбору

  • Данные по материалам для размольных стаканов/шаров

    Материал Основной компонент материала Плотность г/см³ Износостойкость Применение для измельчаемого материала
    Агат SiO2 2,65 хорошо мягкие пробы до средней твердости
    Оксид циркония ZrO2 5,7 очень хорошо волокнистые, абразивные пробы
    Закаленная, нержавеющая сталь Fe - Cr 7,7 хорошо твердые, средней твердости , хрупкие пробы
    Твердый сплав карбид вольфрама WC 14,3 очень хорошо твердые, абразивные пробы
  • Размер мелющих шаров

    Типы обрабатываемого материала Соответ диаметр шаров
    Жесткий материал с максимальным размером 10 мм 20 мм
    Средний размер материала ≤ 5 мм 20 мм, 15 мм или 10 мм
    Мелкий очень материал 0,1 - 0,5 мм 10 мм или меньше
    Мелкий материал 0,1 3 мм или меньше
    Гомогенизация сухих или жидких образцов 20 мм или меньше
    Гомогенизация вязких образцов 20 мм
  • Рекомендуемое количество шаров на размольный стакан

    Размольные шары ≥ 5 мм
    Рекомендуемое количество шаров на размольный стакан
    Размольный стакан/
    полезный объем (измельчаемый материал)
    125 мл
    15 – 50 мл
    150 мл
    20 – 70 мл
    250 мл
    30 – 125 мл
    420 мл
    60 – 200 мл
    500 мл
    80 – 225 мл
    Шары Ø
    20 мм 9 12 15 20 25
    15 мм 25 35 45 60 70
    10 мм 35 40 50 80 100
    5 мм 600 900 1200 1800 2000
    Размольные шары ≤ 3 мм
    Рекомендуемая навеска шаров на размольный стакан в граммах
    Размольный стакан/
    полезный объем (измельчаемый материал)
    150 мл
    20 – 70 мл
    250 мл
    30 - 125 мл
    500 мл
    80 – 225 мл
    Материал
    Оксид циркония 170 г 400 г 800 г
    Нержавеющая сталь / закаленная сталь 350 г 500 г 1100 г
    Твердый сплав карбид вольфрама 800 г 1000 г 2100 г
  • Дополнительная информация

    Размольные шары с диаметром 3 мм и меньше нужно взвешивать. Приведенная выше таблица содержит указания по необходимой навеске на размольный стакан.

    Количество размольных шаров может быть уменьшено на вплоть до 15 %, однако тогда нужно считаться с повышенным износом. Указанное наполнение шарами на стакан является минимальным количеством; в зависимости от поведения материала, его, возможно, следует увеличить.

    Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения размольные стаканы и шары высокой плотности и таким образом с большей ударной энергией.

Для достижения наилучших результатов измельчения размольные шары предлагаются в диаметрах 0,1 - 20 мм из  различных материалов. Это позволяет целенаправленно избегать загрязнения проб нежелательной стружкой. Рекомендуемое количество шаров на размольный стакан указано в руководстве по выбору.

ВЫБЕРИТЕ ДИАМЕТР РАЗМОЛЬНЫХ ШАРОВ

Размольные шары диаметром 20 мм для размольных стаканов 500 мл, 250 мл, 160 мл

agate - SiO2 - polished
№ 55.0200.05
Grinding ball agate 20 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0200.27
Grinding ball zirconium oxide, 20 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0200.09
Grinding ball hardened, stainless steel, 20 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0200.08
Grinding ball hardmetal tungsten carbide, 20 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 15 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 500 МЛ, 250 МЛ, 160 МЛ

agate - SiO2 - polished
№ 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 10 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 500 МЛ, 250 МЛ, 160 МЛ

agate - SiO2 - polished
№ 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 5 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 500 МЛ, 250 МЛ, 160 МЛ

agate - SiO2 - polished
№ 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Размольные шары диаметром ≤ 3 мм для размольных стаканов 500 мл, 250 мл, 150 мл

3 mm dia. zirconium oxide ZrO2
№ 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
№ 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
№ 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
№ 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
№ 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
№ 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
№ 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
№ 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
№ 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
№ 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
№ 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Специальные принадлежности

Программное обеспечение MillControl обеспечивает автоматическое управление планетарной мельницей PULVERISETTE 5 premium line и валидацию процесса измельчения. Заданное/фактическое число оборотов и потребляемая мощность проверяются и документируются. При помощи размольных стаканов EASY GTM со специальной крышкой и передатчиком Вы превращаете свою PULVERISETTE 5 premium line в аналитическую измерительную систему для отображения значений давления и температуры в процессе измельчения.
Для быстрого и надежного применения в атмосфере защитного газа и для механического активирования и легирования рекомендуется применять газовые крышки premium line.

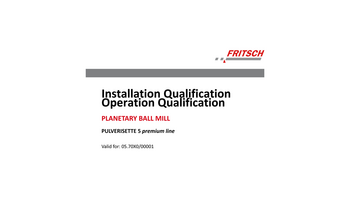

Также можно получить сертификат IQ/OQ.

ВЫБЕРИТЕ СПЕЦИАЛЬНЫЕ ПРИНАДЛЕЖНОСТИ

ПРОГРАММНОЕ ОБЕСПЕЧЕНИЕ MILLCONTROL

Software MillControl for Windows
№ 83.5605.00
for Windows for automatic control of the mill and validation of the grinding process

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.

Detailed information on MillControl is available here

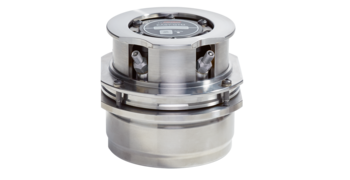

EASY GTM - СИСТЕМА ИЗМЕРЕНИЯ ДАВЛЕНИЯ ГАЗА И ТЕМПЕРАТУРЫ ДЛЯ КОНТРОЛЯ ПРОЦЕССА ИЗМЕЛЬЧЕНИЯ

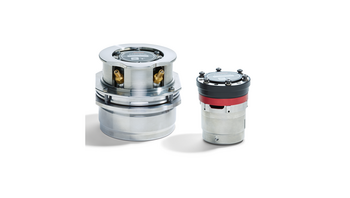

Receiver unit - board and software MillControl
№ 81.0013.00
receiver unit – board and software MillControl

Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.

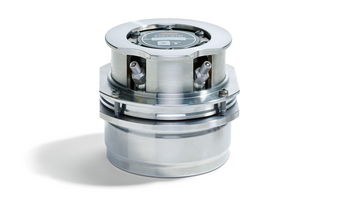

250 ml grinding bowl made of zirconium oxide - ZrO2 with special lid with gassing valves and transmitter
№ 50.9250.00
grinding bowl zirconium oxide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line and into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in hardened, stainless steel and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
250 ml grinding bowl made of hardened, stainless steel - Fe-Cr with special lid with gassing valves and transmitter
№ 50.9280.00
grinding bowl hardened, stainless steel with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
250 ml grinding bowl made of hardmetal tungsten carbide - WC with special lid with gassing valves and transmitter
№ 50.9310.00
grinding bowl hardmetal tungsten carbide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and stainless steel.
Only one receiver unit has to be ordered, regardless of the number of EASY GTM-bowls used.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Одноразовые принадлежности

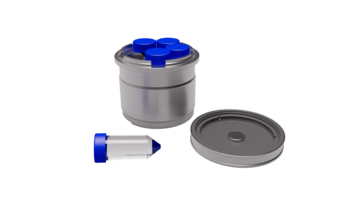

grinding bowl made of aluminium
№ 50.6436.00
grinding bowl made of aluminium with 5 tubes 25 ml volume

The grinding bowl made of aluminium with 5 tubes of 25 ml volume is utilized for the single-use technology for our Planetary Mill P5 premium line.


set of tubes 25 ml volume with lids
№ 50.6437.00
set of tubes 25 ml volume with lids (set = 10 pieces)

The set of set of tubes 25 ml volume with lids (set = 10 pieces) for inserting into our grinding bowl made of aluminium order no. 50.6436.00.


ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ В АТМОСФЕРЕ ЗАЩИТНОГО ГАЗА И ДЛЯ МЕХАНИЧЕСКОГО ЛЕГИРОВАНИЯ

ГАЗОВЫЕ КРЫШКИ С КЛАПАНАМИ И УПЛОТНЕНИЕМ

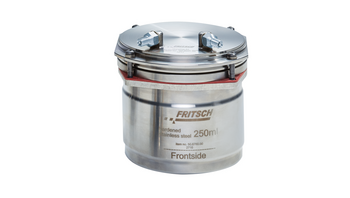

agate - SiO2 - with steel casing
№ 50.6407.00
agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Agate gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.6497.00
zirconium oxide with steel casing for all grinding bowls PULVERISETTE 5  <i>premium line</i>

Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
№ 50.6557.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

hardened stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.6587.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

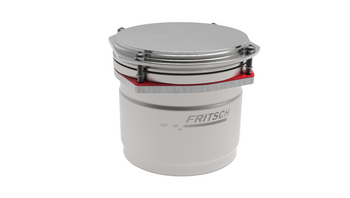

Завинчивающаяся крышка размольного стакана с уплотнением

agate - SiO2 - with steel casing
№ 50.6405.00
agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid agate with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.6495.00
zirconium oxide with with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid zirconium oxide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
№ 50.6555.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardened stainless steel with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.6585.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardmetal tungsten carbide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

СЕРТИФИКАЦИЯ

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0310.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Mill PULVERISETTE 5 premium line.


№ для заказа
05.7020.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Телефон +49 67 84 70 0

База данных протоколов измельчения

ИСПЫТАТЬ СЕЙЧАС

БЕСПЛАТНОЕ ТЕСТОВОЕ ИЗМЕЛЬЧЕНИЕ

Пришлите нам свою пробу, и мы выполним тестовое измельчение - вы получите индивидуальный протокол измельчения.
