Планетарная микромельница

PULVERISETTE 7

premium line

№ для заказа
07.5000.00
Принадлежности

Пожалуйста, обратите внимание: Для планетарной микромельницы PULVERISETTE 7 premium line Вам понадобится еще как минимум 2 размольных стакана на ваш выбор и соответствующее количество размольных шаров. К тому же материал размольного стакана должен быть тверже, чем измельчаемый материал. Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения размольные стаканы и шары с более высокой плотностью и таким образом с большей ударной энергией. Пожалуйста, учитывайте полезный объем, он не идентичен с объемом стакана!

РАЗМОЛЬНЫЙ СТАКАН

Руководство по выбору

  • Данные по материалам для размольных стаканов/шаров

    Материал Основной компонент материала Плотность г/см³ Износостойкость Применение для измельчаемого материала
    Агат SiO2 2,65 хорошо мягкие пробы до средней твердости
    Спеченный корунд Al2O3 (99,7 %) 3,8 условно хорошо пробы средней твердости, волокнистые пробы
    Нитрид кремния Si3N4 3,25 экстремально хорошо абразивные пробы, измельчение без металла
    Оксид циркония ZrO2 5,7 очень хорошо волокнистые, абразивные пробы
    Закаленная, нержавеющая сталь Fe - Cr 7,7 хорошо твердые, средней твердости, хрупкие пробы
    Твердый сплав карбид вольфрама WC 14,3 очень хорошо твердые, абразивные пробы
  • Рекомендуемое количество шаров на размольный стакан

    Размольные шары ≥ 5 мм
    Рекомендуемое количество шаров на размольный стакан
    Размольный стакан/
    полезный объем (измельчаемый материал)
    20 мл
    1 – 9 мл
    45 мл
    3 – 20 мл
    80 мл
    10 - 30 мл
    Шары Ø
    20 мм 5
    15 мм 7 10
    10 мм 10 18 25
    5 мм 80 180 250
    Размольные шары ≤ 3 мм
    Рекомендуемая навеска шаров на стакан в граммах
    Размольный стакан/
    полезный объем (измельчаемый материал)
    20 мл
    1 – 9 мл
    45 мл
    3 – 20 мл
    80 мл
    10 - 30 мл
    Материал
    Оксид циркония 30 г 70 г 100 г
    Нержавеющая сталь / закаленная сталь 40 г 90 г 150 г
    Твердый сплав карбид вольфрама 80 г 200 г 300 г
  • Дополнительная информация

    Размольные шары с диаметром 3 мм и меньше нужно взвешивать. Приведенная выше таблица содержит указания по необходимой навеске на размольный стакан.

    Количество размольных шаров может быть уменьшено на вплоть до 15 %, однако тогда нужно считаться с повышенным износом. Указанное наполнение шарами на стакан является минимальным количеством; в зависимости от поведения материала, его, возможно, следует увеличить.

    Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения размольные стаканы и шары высокой плотности и таким образом с большей ударной энергией.

  • Размер мелющих шаров

    Типы обрабатываемого материала Соответ диаметр шаров
    Жесткий материал с максимальным размером 10 мм 20 мм
    Средний размер материала ≤ 5 мм 20 мм, 15 мм или 10 мм
    Мелкий очень материал 0,1 - 0,5 мм 10 мм или меньше
    Мелкий материал 0,1 3 мм или меньше
    Гомогенизация сухих или жидких образцов 20 мм или меньше
    Гомогенизация вязких образцов 20 мм

Выберите 2 размольных стакана в соответствии с вашим объемом проб, предлагаемых в размерах 20 мл, 45 мл и 80 мл. Все размольные стаканы FRITSCH premium line имеют оболочку из нержавеющей стали, имеют маркировку и одинаковый внутренний диаметр – независимо от их емкости. Подробности по полезному объему указаны в руководстве по выбору. Для достижения наилучших результатов измельчения все размольные стаканы предлагаются в исполнении из 7 различных материалов. Это позволяет целенаправленно избегать загрязнения проб нежелательной стружкой.

ВЫБЕРИТЕ ОБЪЕМ РАЗМОЛЬНОГО СТАКАНА

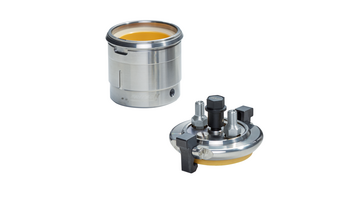

РАЗМОЛЬНЫЙ СТАКАН ОБЪЕМОМ 80 МЛ

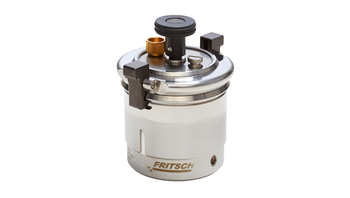

agate - SiO2 - with steel casing
№ 50.9620.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.870 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
№ 50.9630.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.940 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
№ 50.9670.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.900 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.9660.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.050 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
№ 50.9650.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.9640.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.580 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЙ СТАКАН ОБЪЕМОМ 45 МЛ

agate - SiO2 - with steel casing
№ 50.9720.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.930 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
№ 50.9730.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.990 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
№ 50.9770.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.960 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.9760.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.070 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.

When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
№ 50.9750.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.9740.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.470 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.

When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЙ СТАКАН ОБЪЕМОМ 20 МЛ

agate - SiO2 - with steel casing
№ 50.9820.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.010 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
№ 50.9830.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.050 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
№ 50.9870.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.030 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.9860.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.100 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
№ 50.9850.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.9840.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.390 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

ЗАПАСНЫЕ УПЛОТНЕНИЯ ДЛЯ ВСЕХ РАЗМОЛЬНЫХ СТАКАНОВ PULVERISETTE 7 premium line

replacement seal ring Silicone 57.5 x 46.5 x 2 mm for agate grinding bowls premium line 80 ml, 45 ml, 20 ml
№ 84.0347.15
replacement seal ring Silicone 57.5 x 46.5 x 2 mm for agate grinding bowls <i>premium line</i> 80 ml, 45 ml, 20 ml

Replacement seal ring made of silicone 57.5 x 48 x 2 mm for agate grinding bowls  premium line  80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicone
Chemical combination of
Element
Silicon - Si
Chloride - Cl
Carbon - C
Hydrogen - H
Oxygen - O
Physical and mechanical properties
Density1.1 g/cm³
Hardness50 shore A


Explanations on hardness data
replacement seal ring Silicone 57.5 x 48 x 2 mm for all other premium line grinding bowls 80 ml, 45 ml, 20 ml volume
№ 84.0342.15
replacement seal ring Silicone 57.5 x 48 x 2 mm for all other <i>premium line</i> grinding bowls 80 ml, 45 ml, 20 ml volume

Replacement seal ring made of silicone 57.5 x 48 x 2 mm for all other premium line grinding bowls 80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicone
Chemical combination of
Element
Silicon - Si
Chloride - Cl
Carbon - C
Hydrogen - H
Oxygen - O
Physical and mechanical properties
Density1.1 g/cm³
Hardness50 shore A


Explanations on hardness data
replacement seal ring Viton 57.5 x 48 x 2 mm for all premium line grinding bowls 80 ml, 45 ml, 20 ml volume
№ 84.0341.15
replacement seal ring Viton 57.5 x 48 x 2 mm for all <i>premium line</i> grinding bowls 80 ml, 45 ml, 20 ml volume

Replacement seal ring made of Viton 57.5 x 48 x 2 mm,  for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume.
Due to a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton, because they have a much higher chemical resistance.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data

УСТРОЙСТВО РАЗГРУЗКИ И ПРОТИВОВЕС

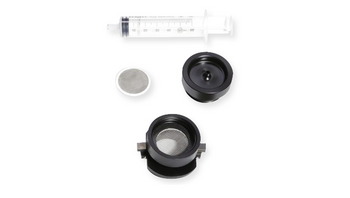

special emptying device for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume
№ 50.9900.00
special emptying device for all grinding bowls <em>premium line</em> 80 ml, 45 ml, 20 ml volume

The emptying device for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume - regardless of the grinding bowl material - enables a quick and easy separation of grinding balls and suspension after the grinding process.


The emptying device can be used for grinding bowls with normal lid as well as for gassing lids.


Directions emptying device

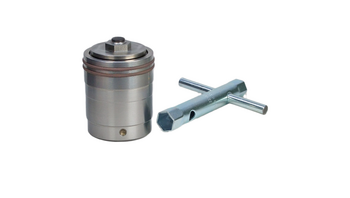

counterweight for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume
№ 50.9890.00
counterweight for all grinding bowls <em>premium line</em> 80 ml, 45 ml, 20 ml volume

Essential for weight compensation, if only one grinding bowl is used for grinding.


РАЗМОЛЬНЫЕ ШАРЫ

Руководство по выбору

  • Данные по материалам для размольных стаканов/шаров

    Материал Основной компонент материала Плотность г/см³ Износостойкость Применение для измельчаемого материала
    Агат SiO2 2,65 хорошо мягкие пробы до средней твердости
    Спеченный корунд Al2O3 (99,7 %) 3,8 условно хорошо пробы средней твердости, волокнистые пробы
    Нитрид кремния Si3N4 3,25 экстремально хорошо абразивные пробы, измельчение без металла
    Оксид циркония ZrO2 5,7 очень хорошо волокнистые, абразивные пробы
    Закаленная, нержавеющая сталь Fe - Cr 7,7 хорошо твердые, средней твердости, хрупкие пробы
    Твердый сплав карбид вольфрама WC 14,3 очень хорошо твердые, абразивные пробы
  • Размер мелющих шаров

    Типы обрабатываемого материала Соответ диаметр шаров
    Жесткий материал с максимальным размером ≤ 5 mm 15 мм / 20 мм
    Средний размер материала 0,5 - 1 мм 15 мм / 10 мм
    Мелкий материал 0,1 - 0,5 мм 10 мм или меньше
    очень Мелкий материал < 0,1 мм 3 мм и меньше
    Гомогенизация сухого или жидкого материала 10 мм или меньше
  • Рекомендуемое количество шаров на размольный стакан

    Размольные шары ≥ 5 мм
    Рекомендуемое количество шаров на размольный стакан
    Размольный стакан/
    полезный объем (измельчаемый материал)
    20 мл
    1 – 9 мл
    45 мл
    3 – 20 мл
    80 мл
    10 - 30 мл
    Шары Ø
    20 мм 5
    15 мм 7 10
    10 мм 10 18 25
    5 мм 80 180 250
    Размольные шары ≤ 3 мм
    Рекомендуемая навеска шаров на стакан в граммах
    Размольный стакан/
    полезный объем (измельчаемый материал)
    20 мл
    1 – 9 мл
    45 мл
    3 – 20 мл
    80 мл
    10 - 30 мл
    Материал
    Оксид циркония 30 г 70 г 100 г
    Нержавеющая сталь / закаленная сталь 40 г 90 г 150 г
    Твердый сплав карбид вольфрама 80 г 200 г 300 г
  • Дополнительная информация

    Размольные шары с диаметром 3 мм и меньше нужно взвешивать. Приведенная выше таблица содержит указания по необходимой навеске на размольный стакан.

    Количество размольных шаров может быть уменьшено на вплоть до 15 %, однако тогда нужно считаться с повышенным износом. Указанное наполнение шарами на стакан является минимальным количеством; в зависимости от поведения материала, его, возможно, следует увеличить.

    Обычно используются размольные стаканы и шары из одного и того же материала. Для сокращения времени измельчения размольные стаканы и шары высокой плотности и таким образом с большей ударной энергией.

Для достижения наилучших результатов измельчения размольные шары предлагаются в диаметрах 0,1 - 20 мм из 7 различных материалов. Это позволяет целенаправленно избегать загрязнения проб нежелательной стружкой. Рекомендуемое количество шаров на размольный стакан указано в руководстве по выбору.

ВЫБЕРИТЕ ДИАМЕТР РАЗМОЛЬНЫХ ШАРОВ

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 20 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 80 МЛ

agate - SiO2 - polished
№ 55.0200.05
Grinding ball agate 20 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
№ 55.0200.06
Grinding ball sintered corundum, 20 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
№ 55.0200.31
Grinding ball silicon nitride, 20 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0200.27
Grinding ball zirconium oxide, 20 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0200.09
Grinding ball hardened, stainless steel, 20 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0200.08
Grinding ball hardmetal tungsten carbide, 20 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 15 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 80 МЛ, 45 МЛ

agate - SiO2 - polished
№ 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
№ 55.0150.06
Grinding ball sintered corundum, 15 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
№ 55.0150.31
Grinding ball silicon nitride, 15 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 10 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 80 МЛ, 45 МЛ, 20 МЛ

agate - SiO2 - polished
№ 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
№ 55.0100.06
Grinding ball sintered corundum, 10 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
№ 55.0100.31
Grinding ball silicon nitride, 10 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ 5 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 80 МЛ, 45 МЛ, 20 МЛ

agate - SiO2 - polished
№ 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
№ 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
№ 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
№ 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

РАЗМОЛЬНЫЕ ШАРЫ ДИАМЕТРОМ ≤ 3 ММ ДЛЯ РАЗМОЛЬНЫХ СТАКАНОВ 80 МЛ, 45 МЛ, 20 МЛ

3 mm dia. zirconium oxide ZrO2
№ 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
№ 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
№ 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
№ 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
№ 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
№ 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
№ 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
№ 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
№ 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
№ 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
№ 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

СПЕЦИАЛЬНЫЕ ПРИНАДЛЕЖНОСТИ

Программное обеспечение MillControl обеспечивает автоматическое управление планетарной микромельницей PULVERISETTE 7 premium line и валидацию процесса измельчения. Заданное/фактическое число оборотов и потребляемая мощность проверяются и документируются. При помощи двух размольных стаканов EASY GTM со специальной крышкой и передатчиком Вы превращаете свою PULVERISETTE 7 premium line в аналитическую измерительную систему для отображения значений давления и температуры в процессе измельчения.
Для быстрого и надежного применения в атмосфере защитного газа и для механического активирования и легирования рекомендуется применять газовые крышки premium line.
Также можно получить сертификат IQ/OQ.

ВЫБЕРИТЕ СПЕЦИАЛЬНЫЕ ПРИНАДЛЕЖНОСТИ

ПРОГРАММНОЕ ОБЕСПЕЧЕНИЕ MILLCONTROL

Software MillControl for Windows
№ 83.5605.00
for Windows for automatic control of the mill and validation of the grinding process

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.

Detailed information on MillControl is available here


EASY GTM - СИСТЕМА ИЗМЕРЕНИЯ ДАВЛЕНИЯ ГАЗА И ТЕМПЕРАТУРЫ ДЛЯ КОНТРОЛЯ ПРОЦЕССА ИЗМЕЛЬЧЕНИЯ

Receiver unit - board and software MillControl
№ 81.0013.00
receiver unit – board and software MillControl

Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.


80 ml grinding bowl made of agate - SiO2 - with special lid and transmitter
№ 50.9040.00
80 ml grinding bowl made of agate with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary  Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in sintered corundum, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
80 ml grinding bowl made of sintered corundum - 99.7% Al2O3- with special lid and transmitter
№ 50.9080.00
80 ml grinding bowl made of sintered corundum with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
80 ml grinding bowl made of silicon nitride - Si3N4- with special lid and transmitter
№ 50.9090.00
80 ml grinding bowl made of silicon nitride with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, zirconium oxide, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
80 ml grinding bowl made of zirconium oxide - ZrO2 - with special lid and transmitter
№ 50.9070.00
80 ml grinding bowl made of zirconium oxide with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
80 ml grinding bowl made of hardened, stainless steel - Fe - Cr - with special lid and transmitter
№ 50.9050.00
80 ml grinding bowl made of hardened, stainless steel with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, hardened stainless steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
80 ml grinding bowl made of hardmetal tungsten carbide - WC - with special lid and transmitter
№ 50.9060.00
80 ml grinding bowl made of hardmetal tungsten carbide with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, stainless steel and hardened steel with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

ПРИНАДЛЕЖНОСТИ ДЛЯ ИЗМЕЛЬЧЕНИЯ В АТМОСФЕРЕ ЗАЩИТНОГО ГАЗА И ДЛЯ МЕХАНИЧЕСКОГО ЛЕГИРОВАНИЯ – ГАЗОВЫЕ КРЫШКИ С КЛАПАНАМИ И УПЛОТНЕНИЕМ

agate SiO2 - with steel casing
№ 50.9627.00
agate with steel casing for PULVERISETTE 7 <i>premium line</i>

Agate gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
№ 50.9637.00
sintered corundum with steel casing for PULVERISETTE 7 <i>premium line</i>

Sintered corundum gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
№ 50.9677.00
silicon nitride with steel casing  for PULVERISETTE 7 <i>premium line</i>

Silicon nitride gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
№ 50.9667.00
zirconium oxide with steel casing for PULVERISETTE 7 <i>premium line</i>

Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
№ 50.9657.00
hardened, stainless steel with steel casing for PULVERISETTE 7 <i>premium line</i>

Hardened, stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
№ 50.9647.00
hardmetal tungsten carbide with steel casing for PULVERISETTE 7 <i>premium line</i>

Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Принадлежности для одноразовой технологии

Grinding bowl made of stainless steel - Fe -Cr
№ 50.9506.00
grinding bowl made of stainless steelding  with 6 sample glasses 1.5 ml volume

The grinding bowl made of stainless steel with 6 sample glasses 1.5 ml volume is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
Additionally, a set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is available with order no. 83.3165.00.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data
Set of sample glasses 1.5 ml volume with lids
№ 83.3165.00
set of sample glasses 1.5 ml volume with lids (set = 12 pieces)

The set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
In order to use the sample glasses for your PULVERISETTE 7 premium line, please order the corresponding grinding bowl made of stainless steel, order no. 50.9506.00.


СЕРТИФИКАЦИЯ

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0260.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Micro Mill PULVERISETTE 7 premium line.


№ для заказа
07.5000.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Телефон +49 67 84 70 0

База данных протоколов измельчения

ИСПЫТАТЬ СЕЙЧАС

БЕСПЛАТНОЕ ТЕСТОВОЕ ИЗМЕЛЬЧЕНИЕ

Пришлите нам свою пробу, и мы выполним тестовое измельчение - вы получите индивидуальный протокол измельчения.
