Режущая мельница

PULVERISETTE 15

№ для заказа
15.4030.00
Принадлежности

Сконфигурируйте свою режущую мельницу PULVERISETTE 15 в соответствии с Вашим конкретным применением. Выберите fиз широкого ассортимента принадлежностей как минимум одну воронку, набор режущего инструмента, вставное сито и приемный сосуд.

Воронка
Воронка для длинномерных и рассыпных материалов из полимерного материала или шлюзовая воронка из нержавеющей стали с полимерным с толкателем

Наборы режущего инструмента
Ротор с прямыми ножами и встречными ножами из инструментальной стали или не содержащей хром инструментальной стали

Вставные сита
Вставные сита с трапецеидальным или квадратным отверстием из нержавеющей стали 316L или не содержащей хром стали DC01

Приемные сосуды
Приемные сосуды на 3,5 литра или приемные сосуды для больших количеств на 60 литров с фильтровальным шлангом

Опциональные принадлежности
Штатив: Универсальный штатив

ЗАГРУЗОЧНАЯ ВОРОНКА

PULVERISETTE 15 может на выбор оснащаться воронкой для длинномерных и рассыпных материалов из полимерного материала, позволяющей подавать также и материалы во всей длине, или шлюзовой воронкой из нержавеющей стали с полимерным с толкателем для всех других материалов.

ВЫБЕРИТЕ ВОРОНКУ

ВОРОНКИ

funnel for long- and bulk solids
№ 15.1550.00

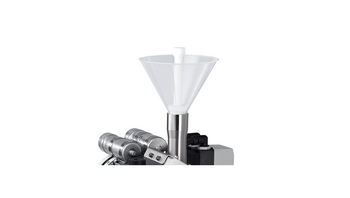

Funnel for long- and bulk solids

With the FRITSCH standard funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.


protected funnel with sample pusher
№ 15.4300.00

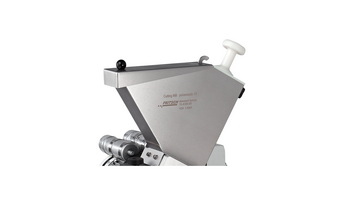

Protected funnel with sample pusher

The protected funnel made of stainless steel with plastic sample pusher enables due to the sample pusher a good handling and an outstanding material feeding.


ПРИЕМНЫЕ СОСУДЫ

Приемный сосуд имеется объемом 3,5 литра. Для измельчения больших количеств рекомендуется использовать приемный сосуд емкостью 60 литров.

ВЫБЕРИТЕ ПРИЕМНИК

ПРИЕМНИКИ

collecting vessel 3.5 litres
№ 15.4400.00
Collecting vessel 3.5 litres

For smaller samples this collecting vessel 3.5 litres is recommended.


collecting vessel 60 litres with filter hose
№ 15.4560.00

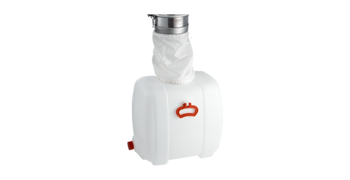

Collecting vessel 60 litres with filter hose

For grinding large quantities this collecting vessel with a capacity of 60 litres and filter hose is recommended.

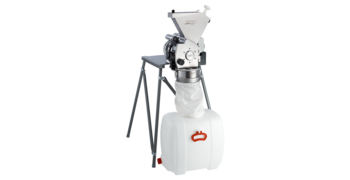

Ideal: The FRITSCH Universal Support Stand offers for your Cutting Mill PULVERISETTE 15 even with the 60 l collecting vessel and filter hose a solid, space-saving and spatially variable basis - order no. 45.5820.00.


НАБОРЫ РЕЖУЩИХ ИНСТРУМЕНТОВ из инструментальной стали

Руководство по выбору

  • Данные по материалу наборов инструментов и рекомендация по применению

    Тип материала и ротора Основной компонент материала Износостойкость Плотность г/см³ Подходит для измельчения
    Инструментальная сталь

    Fe - Cr условно хорошо 7,85
    Ротор с прямыми ножами и
    встречными ножами
    № для заказа 15.4603.00
    среднетвердых, хрупких проб и хорошо поддающегося резке материала, например, сено, солома, волокнистые и биологические материалы
    несодержащая хром инструментальная сталь Fe условно хорошо 7,8
    Ротор с прямыми ножами и
    встречными ножами
    № для заказа 15.4602.00
    особенно рекомендуется для подготовки проб согласно RoHS, например, для выявления гексавалентного хрома и XRF-анализов

Ротор из инструментальной стали с прямыми ножами, расположенными параллельно к встречным ножам, годится для хорошо поддающегося резке материала, например, сена, соломы, волокнистых и биологических материалов.

ВЫБЕРИТЕ НАБОР РЕЖУЩЕГО ИНСТРУМЕНТА

НАБОР РЕЖУЩЕГО ИНСТРУМЕНТА ИЗ ИНСТРУМЕНТАЛЬНОЙ СТАЛИ

rotor with straight cutting edges and fixed knives
№ 15.4603.00
Rotor with straight cutting edges and fixed knives made of tool steel

The rotor with straight cutting edges which run parallel to the fixed knives is especially suitable for easily cuttable materials like hay, straw, fibrous and biological materials. The rotor knives have two cutting edges and can simply be turned when one side is used up. Your advantage: double service life.


For the sample preparation according to RoHS (for the poof of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets made of chromium-free tool steel.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Rotorknives
General specifications
MaterialTool steel – 1.2379
ISO/EN/DIN codeX155CrVMo12/1 / 59350
Chemical composition
ElementShare %
Iron – Fe85.79 – 82.14
Carbon – C1.45 – 1.6
Silicon – Si0.1 - 0.6
Manganese – Mn0.2 – 0.6
Phosphorus – P0.03
Sulphur – S0.03
Chromium – Cr11 – 13
Molybdenum – Mo0.7 - 1
Tungsten – W0.7 - 1
Physical and mechanical properties
Density 7.85 g/cm³ ;
Hardness58-60 HV


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037 – FeP03
ISO/EN/DIN codeS235 JR
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Chromium – Cr1.660
Physical and mechanical properties
Density7.85 g/cm³
Hardness20-95 HV


Explanations on hardness data

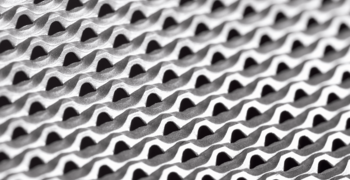

ВСТАВНЫЕ СИТА из нержавеющей стали 316L

Вставное сито определяет конечную степень измельчения пробы. Предлагаются вставные сита с трапецеидальными и квадратными отверстиями. Вставные сита с трапецеидальными отверстиями имеют эффект дополнительного измельчения благодаря дополнительной срезающей нагрузки. Вставные сита с квадратными отверстиями рекомендуются для измельчения хрупких материалов и материалов средней степени измельчения с узким диапазоном крупности частиц.
Вставное сито доступны также и с другими отверстиями.

ВЫБЕРИТЕ КАК МИНИМУМ ОДНО ВСТАВНОЕ СИТО

ВСТАВНЫЕ СИТА ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ 316L

0.25 mm trapezoidal perforation
№ 45.1200.10

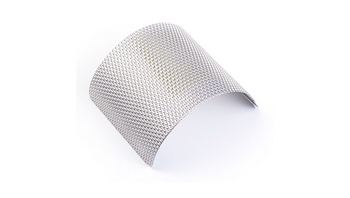

Sieve insert 0.25 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
№ 45.1210.10
Sieve insert 0.5 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
№ 45.1220.10
Sieve insert 0.75 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
№ 45.1230.10
Sieve insert 1 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
№ 45.1240.10
Sieve insert 1.5 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
№ 45.1250.10
Sieve insert 2 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving of medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm square perforation
№ 45.2190.10

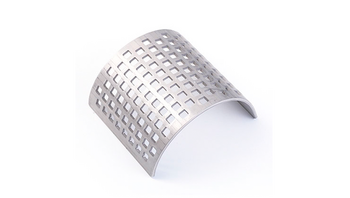

Sieve insert 2 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.


Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm square perforation
№ 45.2200.10
Sieve insert 4 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm square perforation
№ 45.2210.10
Sieve insert 6 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
8 mm square perforation
№ 45.2220.10
Sieve insert 8 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample. Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
10 mm square perforation
№ 45.2230.10
Sieve insert 10 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
20 mm square perforation
№ 45.2300.10
Sieve insert 20 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ПРИНАДЛЕЖНОСТЬ ДЛЯ ИЗМЕЛЬЧЕНИЯ БЕЗ ХРОМА

Если для подготовки проб согласно RoHS – например, для выявления гексавалентного хрома – или XRF-анализов предельно важно измельчение без привнесения хрома, то с наборами режущего инструмента FRITSCH из несодержащей хром инструментальной стали и вставные сита из несодержащей хром стали DC01 Вы можете об этом не беспокоиться.

ВЫБЕРИТЕ набор режущего инструмента и вставное сито

НАБОР РЕЖУЩЕГО ИНСТРУМЕНТА ИЗ НЕСОДЕРЖАЩЕЙ ХРОМ ИНСТРУМЕНТАЛЬНОЙ СТАЛИ

rotor with straight cutting edges and fixed knives
№ 15.4602.00
Rotor with straight cutting edges and fixed knives made of chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.
The chromium-free tool steel rotor with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials.
The rotor knives can be turned, since they have two cutting edges. Your advantage: doubling the service life of the rotor knives.
For all other applications the rotor of tool steel can be used, because of its hardness and top resistance against abrasion.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Rotor knives
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037
ISO/EN/DIN codeS235- JR formerly St 37
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Silicon – Si0.3
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density 7.85 g/cm³
Hardness ~ 65 HRA


Explanations on hardness data

ВСТАВНЫЕ СИТА НЕ СОДЕРЖАЩЕЙ ХРОМ СТАЛИ 01L

0.5 mm trapezoidal perforation
№ 45.1211.09
Sieve insert 0.5 mm trapezoidal perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
1 mm trapezoidal perforation
№ 45.1230.09
Sieve insert 1 mm trapezoidal perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
4 mm square perforation
№ 45.2200.09
Sieve insert 4 mm square perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data

ШТАТИВ

Универсальный штатив FRITSCH образует крепкое, компактное и изменяемое в пространстве основание для мельницы.

ВЫБЕРИТЕ УНИВЕРСАЛЬНЫЙ ШТАТИВ

УНИВЕРСАЛЬНЫЙ ШТАТИВ

universal support stand
№ 45.5820.00

СЕРТИФИКАЦИЯ

IQ/OQ documentation (questionnaire format - implementation by customer)
№ 96.0400.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Cutting Mill PULVERISETTE 15.


№ для заказа
15.4030.00
Helen Müller
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Телефон +49 67 84 70 0

База данных протоколов измельчения

ИСПЫТАТЬ СЕЙЧАС

БЕСПЛАТНОЕ ТЕСТОВОЕ ИЗМЕЛЬЧЕНИЕ

Пришлите нам свою пробу, и мы выполним тестовое измельчение - вы получите индивидуальный протокол измельчения.
