Вибрационный грохот ANALYSETTE 3 PRO

Принадлежности

В стандартный комплект поставки аналитического грохота ANALYSETTE 3 PRO входят крепление и ПО AUTOSIEVE (тестовая лицензия на 90 дней).

Пожалуйста, обратите внимание: Для этого грохота FRITSCH Вам понадобятся еще натяжная крышка сита, аналитические сита и поддон сита.

ANALYSETTE 3 может быть переналажена в вибрационную микромельницу PULVERISETTE 0 для измельчения и гомогенизации небольших количеств проб:

FRITSCH PULVERISETTE 0

FRITSCH предлагает также грохот ANALYSETTE 3 SPARTAN с ручной регулировкой амплитуды:

FRITSCH ANALYSETTE 3 SPARTAN

Принадлежности для рассева в сухой среде

Для аналитических сит FRITSCH с диаметром 100 мм или 200 мм / 8" предлагаются натяжные крышки сит из плексигласа для наблюдения за процессом рассева. Для рассева материалов, в которых необходимо избегать загрязнения металлом, вы можете приобрести натяжную крышку из пластиковый пом (без прозрачного окна). Разумеется, мы предлагаем Вам для этих целей также и соответствующие полимерные поддоны сита и сита. Поддоны сита и промежуточные поддоны сита для нескольких процессов рассева за один проход из нержавеющей стали предлагаются подходящих размеров для всех размеров сит.

Выберите принадлежности для рассева в сухой среде

Принадлежности для рассева в сухой среде

clamping lid plexiglas for test sieves 200 mm/8" dia.
№ 31.2020.00
plexiglas for dry sieving with test sieves 200 mm/8" dia.

For dry sieving with test sieves 200 mm/8" dia.


The clamping lid made of plexiglas allows the operator to observe the sieving process.
For applications, where it is not required to observe the sieving process, a clamping lid without window insert article no. 31.2050.00, is also available.
This clamping lid can also be used if you would like to use the Vibratory Micro Mill PULVERISETTE 0 as a Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN. The needed sieve pan and the sieves must be ordered separately.


clamping lid POM plastic (without window) for all test sieves up to 200 mm/8" dia.
№ 31.2050.00
POM plastic - without window - for dry sieving for all test sieves up to 200 mm/8" dia.

For dry sieving for all test sieves up to 200 mm/8" dia.


The POM plastic clamping lid without window for applications, where it is not required to observe the sieving process, respectively in order to sieve materials where a metallic contamination must be avoided. For applications, where it is required to observe the sieving process, a clamping lid with window insert article no. 31.2020.00, is also available.
This clamping lid can also be used if you would like to use the Vibratory Micro Mill PULVERISETTE 0 as a Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN.
The needed sieve pan and the sieves must be ordered separately.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
sieve tensioning system TorqueMaster incl. clamping lid plexiglas for test sieves 200 mm/8" dia. and electrical tool
№ 31.2100.00
Sieve Tensioning System TorqueMaster incl. clamping lid plexiglas and electrical tool 100-240 V/1~, 50-60 Hz

For dry sieving with test sieves 200 mm/8" dia.

Consisting of clamping lid plexiglas for test sieves 200 mm and 8" dia. and electrical tool 100 -240 V/1~, 50 -60  Hz

The sieve tensioning system TorqueMaster enables an automatic, reproducible tensioning of the sieve stack on the sieve shaker. Although the tensioning has a great influence on the result, it is relatively undefined in conventional systems. The unique properties of the TorqueMaster brings constant, reproducible tensioning on the sieve stack through the use of a high-quality electrical tool which results the calibration of sieve tensioning as part of the monitoring of test equipment according to ISO 9001:2000.

Although you may not have a FRITSCH sieve shaker, the TorqueMaster is the best tensioning system for your sieve stack. TorqueMaster can be attached and used with any sieve shaker.


clamping lid POM plastic for test sieves 100 mm dia.
№ 31.2016.00
clamping lid POM plastic with security glass for test sieves 100 mm dia.

Clamping lid POM plastic with security glass for dry sieving with test sieves 100 mm dia. and grinding head for conversion of the ANALYSETTE 3 to the PULVERISETTE 0.
The clamping lid with security glass allows the operator to observe the sieving process and the ANALYSETTE 3 can be used with this clamping lid as Vibratory Micro Mill PULVERISETTE 0 for milling and homogenizing of small quantities of samples (sample quantity: 0.1 – 10 ml, max. feed size: < 5 mm, final fineness: 5 – 10 µm).


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
interposed sieve pan made of stainless steel 200 mm dia., 50 mm height
№ 31.1300.03
Interposed sieve pan made of stainless steel 200 mm dia., 50 mm height

For dry sieving with test sieves 200 mm dia.

If several sieving operations should be carried out simultaneously, an interposed sieve pan must be used as sieve pan between the sieves.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
interposed sieve pan made of stainless steel 8" dia., 2" height
№ 31.1320.03
Interposed sieve pan made of stainless steel 8" dia., 2" height

For dry sieving with test sieves 8" dia.

If several sieving operations should be carried out simultaneously, an interposed sieve pan must be used as sieve pan between the sieves.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
sieve pan made of stainless steel 200 mm dia., 50 mm height
№ 31.1000.03
Sieve pan made of stainless steel 200 mm dia., 50 mm height

For dry sieving with test sieves 200 mm dia.

The sieve pan made of stainless steel completes the sieve stack.





The sieve pan made of stainless steel is also available in 200 mm dia., 25 mm height.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
sieve pan made of stainless steel 8" dia., 2" height
№ 31.1020.03
Sieve pan made of stainless steel 8" dia., 2" height

For dry sieving with test sieves 8" dia.

The sieve pan made of stainless steel completes the sieve stack.





This sieve pan made of stainless steel is also available in 8" dia., 1" height.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
sieve pan made of stainless steel 100 mm dia., 40 mm height
№ 31.1040.03
Sieve pan made of stainless steel 100 mm dia., 40 mm height

For dry sieving with test sieves 100 mm dia.

The sieve pan made of stainless steel completes the sieve stack.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data

Принадлежности для рассева в жидкой среде

При рассеве в жидкой среде с аналитическими ситами (200 мм / 8") практичная крышка сита с 2-мя вращающимися дюзами обеспечивает равномерное орошение рассеиваемого материала для оптимального результата рассеивания. Для одновременного орошения расположенных выше и ниже сит, предлагаются специальные кольцевые сита с тремя дюзами. И для рассева в жидкой среде с аналитическими ситами с диаметром 100 мм предлагается натяжная крышка сита из плексигласа с 1 дюзой. Соответствующие поддоны сита со стоком можно предлагаются для всех размеров сит. Чтобы при рассеве в жидкой среде с аналитическими ситами < 100 мкм избежать образования воздушных подушек, FRITSCH предлагает использование специальных вентиляционных колец.

Выберите принадлежности для рассева в жидкой среде

Принадлежности для рассева в жидкой среде

clamping lid plexiglas with 2 rotation nozzles for test sieves 200 mm/8" dia.
№ 31.0400.00
plexiglas for wet sieving with test sieves 200 mm/8" dia

With 2 rotation nozzles for wet sieving with test sieves 200 mm/8" dia.

The wet clamping lid features 2 rotation nozzles which sprays the entire interior chamber, thus helping to flush the material through the sieve apertures.
Especially recommended for materials with a high electrostatic charge or very high content of fine material. This clamping lid can also be used if you would like to use the Vibratory Micro Mill PULVERISETTE 0 as a Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN. The needed sieve pan and the sieves must be ordered separately.


sieve pan made of stainless steel with outlet 200 mm dia., 50 mm height
№ 31.1100.03
Sieve pan made of stainless steel with outlet 200 mm dia., 50 mm height

For wet sieving with test sieves 200 mm dia.

The sieve pan made of stainless steel with outlet completes the sieve stack.


This sieve pan made of stainless steel with outlet is also available in 200 mm dia., 25 mm height.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
interposed sieving ring with 3 nozzles for test sieves 200 mm dia.
№ 31.0240.00
Interposed sieving ring with 3 nozzles

For wet sieving with test sieves 200 mm dia.

For simultaneous spraying the sieves above and below.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
Venting ring for test sieves 200 mm dia.
№ 31.1330.03
Venting ring for test sieves

Venting ring for test sieves 200 mm dia. - required when utilizing test sieves < 100 µm. Venting rings are used to prevent the occurrence of air cushions during wet sieving.


sieve pan made of stainless steel with outlet 8" dia., 2" height
№ 31.1120.03
Sieve pan made of stainless steel with outlet 8" dia., 2" height

For wet sieving with test sieves 8" dia.

The sieve pan made of stainless steel with outlet completes the sieve stack.


This sieve pan made of stainless steel with outlet is also available in 8" dia., 1" height.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
interposed sieving ring with 3 nozzles for test sieves 8" dia.
№ 31.0250.00
Interposed sieving ring with 3 nozzles

For wet sieving with test sieves 8" dia.

For simultaneous spraying the sieves above and below.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
Venting ring for test sieves 8" dia.
№ 31.1340.03
Venting ring for test sieves

Venting ring for test sieves 8" dia. - required when utilizing test sieves < 100 µm. Venting rings are used to prevent the occurrence of air cushions during wet sieving.


clamping lid plexiglas with 1 nozzle for test sieves 100 mm dia.
№ 31.2040.00
Clamping lid plexiglas

with 1 nozzles for wet sieving with test sieves 100 mm dia.

The wet clamping lid features 1 nozzle which sprays the entire interior chamber, thus helping to flush the material through the sieve apertures.

Especially recommended for materials with a high electrostatic charge or very high content of fine material.


This clamping lid can also be used if you would like to use the Vibratory Micro Mill PULVERISETTE 0 as a Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN. The needed sieve pan and sieves must be ordered separately.


sieve pan made of stainless steel with outlet 100 mm dia., 40 mm height
№ 31.1140.00
Sieve pan made of stainless steel with outlet 100 mm dia., 40 mm height

For wet sieving with test sieves 100 mm dia.

The sieve pan made of stainless steel with outlet completes the sieve stack.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data

Принадлежности для микропрецизионного рассева

С ситами микропрецизионного рассева ANALYSETTE 3 PRO годится для рассева в жидкой среде тонкой пыли от 5 мкм до 100 мкм и мельчайших количеств проб от 0,05 до 0,5 г. Микропрецизионные сита из фольги из чистого никеля с диаметром сита в 100 мм выделяются большой открытой поверхностью сита. Благодаря вытравленным, расширяющимся вниз отверстиям, надежно предотвращается забивание. Подходящий набор натяжения, натяжная крышка, поддон сита, дистанционное кольцо сита и натяжное кольцо с быстроразъемным замком вместе с большой поверхностью сита позволяют рационально работать.

Выберите принадлежности для микропрецизионного рассева

Принадлежности для микропрецизионного рассева

clamping set for micro-precision sieving 100 mm dia.
№ 33.1200.00
Clamping set for micro-precision sieves 100 mm dia.

Consisting of 3 screws + clamps, without clamping lid, sieve pan and micro-precision sieves.


For conversion of the ANALYSETTE 3 PRO for micro-precision sieving.
Micro precision sieves offer the most accurate process in wet sieving of fine material between 5 µm and 100 µm and smallest sample amounts of 0.05 - 0.5 g.


clamping lid aluminium/Plexiglas with 1 nozzle for micro-precision sieves 100 mm dia.
№ 33.1050.00
Clamping lid aluminium/plexiglas with 1 nozzle

With 1 for dry and wet sieving with micro-precision sieves 100 mm dia.

The clamping lid features 1 nozzle, which sprays in the case of wet sieving the entire interior chamber, thus helping to flush the material through the sieve apertures.


funnel (sieve pan) made of aluminium with outlet for micro-precision sieves 100 mm dia.
№ 33.1150.00
Funnel (sieve pan) made of aluminium with outlet

For wet sieving with micro-precision sieves 100 mm dia.

The funnel (sieve pan) made of aluminium with outlet completes the sieve stack.


sieve spacer made of aluminium with 2 seal rings for micro-precision sieves 100 mm dia.
№ 33.1000.00
Sieve spacer made of aluminium with 2 seal rings

For wet sieving with micro-precision sieves 100 mm dia.

The sieve spacer made of aluminium with 2 seal rings is used above the sieve pan and above every micro-precision sieve. Therefore one more sieve spacer must be ordered in addition to the number of micro-precision sieves.


fast locking clamp made of stainless steel for micro-precision sieves 100 mm dia.
№ 33.1100.00
Fast locking clamp made of stainless steel

For wet sieving with micro-precision sieves 100 mm dia.

The fast locking clamp made of stainless steel must be used for fixing the sieve pan, the sieves and the clamping lid with the sieve spacer. Therefore two more fast locking clamps must be ordered in addition to the number of micro-precision sieves.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data

Сертификация

Для сертификации ANALYSETTE 3 PRO в качестве измерительного прибора могут быть предоставлены свидетельство о приемке 3.1 EN 10204, а также бланк для IQ/OQ-документации. Свидетельство о приемке 3.1 EN 10204 предлагается также и для аналитических сит FRITSCH согласно ISO 3310 -1.

Выберите сертификацию

Сертификация

Inspection certificate 3.1 EN 10204 for FRITSCH Sieve Shaker ANALYSETTE 3 PRO
№ 96.0010.00
Inspection certificate 3.1 EN 10204 for FRITSCH Sieve Shaker ANALYSETTE 3 PRO

Inspection certificate 3.1 EN 10204 for FRITSCH Sieve Shaker ANALYSETTE 3 PRO


The inspection certificate 3.1 EN 10204 enables the use of the Sieve Shaker ANALYSETTE 3 PRO as calibration and validation inspection instrument.


Of course, we would also be happy to recertify your FRITSCH Vibratory Sieve Shaker ANALYSETTE 3 PRO at our headquarters in Idar-Oberstein.


Please note: if necessary please order together with each test sieve.


Inspection certificate 3.1 EN 10204 for FRITSCH test sieves according to ISO 3310-1
№ 31.0900.00
Inspection certificate 3.1 EN 10204 for FRITSCH test sieves according to ISO 3310-1

Inspection certificate 3.1 EN 10204 for test sieves according to ISO 3310-1


The inspection certificate 3.1 EN 10204 is essential when using the test sieves as testing equipment in accordance with DIN EN ISO 9001.


Of course, we would also be happy to recertify your FRITSCH test sieves according to ISO 3310-1 at our headquarters in Idar-Oberstein.


Please note: if necessary please order together with each test sieve.

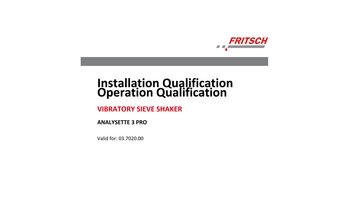

IQ/OQ documentation for FRITSCH Sieve Shaker ANALYSETTE 3 PRO
№ 96.0200.00
IQ/OQ documentation for FRITSCH Sieve Shaker ANALYSETTE 3 PRO

IQ/OQ Dokumentation (als Vordruck - Durchführung nicht im Preis enthalten) zur selbständigen Durchführung zur Unterstützung der Gerätequalifizierung im Qualitätsmanagement-System für die Vibrations-Siebmaschine ANALYSETTE 3 PRO.


Принадлежности для автоматического ситового анализа

Мультиязыковое программное обеспечение AUTOSIEVE для управления ANALYSETTE 3 PRO и для автоматического анализа, простого контроля и документации Ваших результатов рассева.

Выберите принадлежности для автоматического ситового анализа

Принадлежности для автоматического ситового анализа

Software AUTOSIEVE-activation
№ 03.2902.00
Software AUTOSIEVE for Windows for control and automatic evaluation of sieve analysis (price for software activation)

Software activation after expiration of the free of charge test phase for FRITSCH software AUTOSIEVE for Windows.


System requirements - Software AUTOSIEVE
Minimum software requirements: Windows 7 or higher
Minimum hardware requirements: standard WINDOWS ™ PC with at least 2 Gbyte RAM


Your advantages with AUTOSIEVE:

  • Automatic evaluation of your sieve Analysis
  • Simple monitoring and documentation of your sieving results
  • Suitable for all FRITSCH Sieve Shakers: Vibratory Sieve Shakers ANALYSETTE 3 PRO and ANALYSETTE 3 SPARTAN and the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18
  • After conducting your sieving– simply connect the laboratory analysis balance, then weigh the sieves before and after sieving using differential weighing – AUTOSIEVE will do the rest
  • Extensive presentation of the results: presentation and printout as cumulative or frequency distribution and as graphs according to DIN ISO 9276-1
  • Controlling of the Vibratory Sieve Shaker ANALYSETTE 3 PRO and entry of all functions such as amplitude, sieving time, interval operation and the type of sieving comfortable via the computer
  • Monitoring of the sieving via the online-comparison of the set and actual amplitude and therefore an auto validation of the sieving process with the Vibratory Sieve Shaker ANALYSETTE 3 PRO

FRITSCH offers for the differential weighing of the sieves a special laboratory analysis balance for the Vibratory Sieve Shakers ANALYSETTE 3 PRO and SPARTAN, which you can order with the following order no. 03.2600.00.
A laboratory analysis balance for the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18 is available on request.


laboratory analysis balance
№ 03.2600.00
Laboratory analysis balance

Up to 4.1 kg (± 0.01 g) with RS232 interface, incl. computer connection cable for automatic sieve evaluation.


The extensive Software AUTOSIEVE for WindowsTM enables the automatic sieve evaluation with every FRITSCH Sieve Shaker. For this purpose a special laboratory analysis balance is required for the Vibratory Sieve Shakers ANALYSETTE 3 PRO and SPARTAN, which you can order with the above mentioned order no. 03.2600.00.


A laboratory analysis balance for the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18 is available on request.


Принадлежности для рассева

Мы предлагаем многочисленные принадлежности для рассева, например, приспособления для очистки отверстий сит, крышки сит и запасные уплотнительные кольца.
Для рассева в сухой среде материалов с высокой долей мелких частиц в качестве приспособления для очистки отверстий сит следует применять агатовые шары с диаметром 10 мм или резиновые шары с диаметром 20 мм для средних и грубых сит и агатовые шары с диаметром 5 мм для тонких сит. Ваше преимущество: Они предотвращают забивание сетки сита.

Выберите принадлежности для рассева

Приспособления для очистки отверстий сита

agate - SiO2 - polished
№ 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium – MgO< 0.02
Sodium carbonate – Na2O< 0.02
Potassium carbonate – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
agate - SiO2 - polished
№ 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium – MgO< 0.02
Sodium carbonate – Na2O< 0.02
Potassium carbonate – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
rubber ball 20 mm dia.
№ 31.0180.15
Rubber ball 20 mm dia.

Are recommended as sieving aids for dry sieving of materials with a high proportion of fine particles.

Recommended quantity per sieve: 5 pieces


Крышки сит

for test sieves 200 mm dia.
№ 31.1200.03
Sieve cover made of stainless steel for test sieves 200 mm dia.

Sieve cover for a test sieve 200 mm dia. or to cover the whole sieve stack 200 mm dia.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
for test sieves 8" dia.
№ 31.1220.03
Sieve cover made of stainless steel for test sieves 8" dia.

Sieve cover for a test sieve 8" dia. or to cover the whole sieve stack 8" dia.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
for test sieves 100 mm dia.
№ 31.1240.03
Sieve cover made of stainless steel for test sieves 100 mm dia.

Sieve cover for a test sieve 100 mm dia. or to cover the whole sieve stack 100 mm dia.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeSymbol X2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
Hardness95 HRB



Explanations on hardness data

Запасные уплотнительные кольца

for test sieves 200 mm/8" dia., 50 mm/2" height, 200 mm dia., 25 mm height
№ 31.0010.16
Replacement seal ring NBR

Replacement seal ring NBR for test sieves:


200 mm dia., 50 mm height


8" dia., 2" height


200 mm dia., 25 mm height


for test sieves 100 mm dia.
№ 31.0520.16
Replacement seal ring NBR

Replacement seal ring NBR for test sieves:


100 mm dia.


for sieve spacer made of aluminium with 2 seal rings (2 are necessary)
№ 84.0230.15
Replacement seal ring NBR

for sieve spacer made of aluminium with 2 seal rings for micro-precision sieving


for each sieve spacer 2 replacement seal rings are necessary!


Accessories for grinding and homogenising small sample quantities

clamping lid POM plastic for test sieves 100 mm dia.
№ 31.2016.00
clamping lid POM plastic with security glass for test sieves 100 mm dia.

Clamping lid POM plastic with security glass for dry sieving with test sieves 100 mm dia. and grinding head for conversion of the ANALYSETTE 3 to the PULVERISETTE 0.
The clamping lid with security glass allows the operator to observe the sieving process and the ANALYSETTE 3 can be used with this clamping lid as Vibratory Micro Mill PULVERISETTE 0 for milling and homogenizing of small quantities of samples (sample quantity: 0.1 – 10 ml, max. feed size: < 5 mm, final fineness: 5 – 10 µm).


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard

Аналитические сита из нержавеющей стали, 200 мм Ø, 50 мм высота согласно ISO 3310-1

Руководство по выбору

  • Если Вам нужно аналитическое сито другого размера, учитывайте, пожалуйста, примеры заказа:

    отклонения от стандартных размеров сит ISO 3310-1 размер ячейки мм/мкм ASTM E11 mesh
    Аналитическое сито 5 мм размер ячейки
    200 мм Ø, высота 50 мм = стандартный размер
    например, 30.1800.03 например, 35.1800.03
    Аналитическое сито 5 мм размер ячейки
    200 мм Ø, высота 25 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 1 например, 30.1810.03 например, 35.1810.03
    Аналитическое сито 5 мм размер ячейки
    8 мм Ø, высота 2 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 2 например, 30.1820.03 например, 35.1820.03
    Аналитическое сито 5 мм размер ячейки
    100 мм Ø, высота 40 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 4 например, 30.1840.03 например, 35.1840.03
  • Дополнительная информация

    Аналитические сита и принадлежности для сит с другими диаметрами и размерами ячеек по запросу.
    Аналитические сита из полиамида поставляются по запросу.
    Аналитические сита и принадлежности для рассева возврату не подлежат!

Для и рассева в сухой и жидкой среде с размерами ячеек от 20 мкм до 63 мм: особенно легкие, прочные и качественно изготовленные. Высоколегированная нержавеющая сталь защищает от коррозии и упрощает очистку. Переходы сетки без канавок предотвращают загрязнение просеиваемого материала. Каждое сито имеет лазерную гравировку, оптически измерено и поставляется с заводской справкой.

Выберите аналитические сита

Аналитические сита из нержавеющей стали, 200 мм Ø, 50 мм высота согласно ISO 3310-1, вкл. заводскую справку

63 mm mesh width
№ 30.0000.03
Test sieve, mesh width 63 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
45 mm mesh width
№ 30.0005.03
Test sieve, mesh width 45 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
31.5 mm mesh width
№ 30.0100.03
Test sieve, mesh width 31.5 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
25 mm mesh width
№ 30.0200.03
Test sieve, mesh width 25 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
22.4 mm mesh width
№ 30.0300.03
Test sieve, mesh width 22.4 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
20 mm mesh width
№ 30.0400.03
Test sieve, mesh width 20 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
19 mm mesh width
№ 30.0500.03
Test sieve, mesh width 400 µm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
18 mm mesh width
№ 30.0600.03
Test sieve, mesh width 18 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
16 mm mesh width
№ 30.0800.03
Test sieve, mesh width 16 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
14 mm mesh width
№ 30.0900.03
Test sieve, mesh width 14 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
12.5 mm mesh width
№ 30.1000.03
Test sieve, mesh width 12.5 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
11.2 mm mesh width
№ 30.1100.03
Test sieve, mesh width 11.2 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
10 mm mesh width
№ 30.1200.03
Test sieve, mesh width 10 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
9 mm mesh width
№ 30.1300.03
Test sieve, mesh width 9 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
8 mm mesh width
№ 30.1400.03
Test sieve, mesh width 8 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
7.1 mm mesh width
№ 30.1500.03
Test sieve, mesh width 7.1 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
6.3 mm mesh width
№ 30.1600.03
Test sieve, mesh width 6.3 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
5.6 mm mesh width
№ 30.1700.03
Test sieve, mesh width 5.6 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
5 mm mesh width
№ 30.1800.03
Test sieve, mesh width 5 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
4.5 mm mesh width
№ 30.1900.03
Test sieve, mesh width 4.5 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
4 mm mesh width
№ 30.2000.03
Test sieve, mesh width 4 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
3.55 mm mesh width
№ 30.2100.03
Test sieve, mesh width 3.55 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
3.15 mm mesh width
№ 30.2200.03
Test sieve, mesh width 3.15 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
2.8 mm mesh width
№ 30.2300.03
Test sieve, mesh width 2.8 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
2.5 mm mesh width
№ 30.2400.03
Test sieve, mesh width 2.5 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
2.24 mm mesh width
№ 30.2500.03
Test sieve, mesh width 2.24 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
2 mm mesh width
№ 30.2600.03
Test sieve, mesh width 2 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1.8 mm mesh width
№ 30.2700.03
Test sieve, mesh width 1.8 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1.6 mm mesh width
№ 30.2800.03
Test sieve, mesh width 1.6 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1.4 mm mesh width
№ 30.2900.03
Test sieve, mesh width 1.4 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1.25 mm mesh width
№ 30.3000.03
Test sieve, mesh width 1.25 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1.12 mm mesh width
№ 30.3100.03
Test sieve, mesh width 1.12 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1 mm mesh width
№ 30.3200.03
Test sieve, mesh width 1 mm, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
900 µm mesh width
№ 30.3300.03
Test sieve, mesh width 900 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
850 µm mesh width
№ 30.3305.03
Test sieve, mesh width 850 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
800 µm mesh width
№ 30.3400.03
Test sieve, mesh width 800 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
710 µm mesh width
№ 30.3500.03
Test sieve, mesh width 710 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
630 µm mesh width
№ 30.3600.03
Test sieve, mesh width 630 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
600 µm mesh width
№ 30.3605.03
Test sieve, mesh width 600 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
560 µm mesh width
№ 30.3700.03
Test sieve, mesh width 560 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
500 µm mesh width
№ 30.3800.03
Test sieve, mesh width 500 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
450 µm mesh width
№ 30.3900.03
Test sieve, mesh width 450 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
400 µm mesh width
№ 30.4000.03
Test sieve, mesh width 400 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
355 µm mesh width
№ 30.4100.03
Test sieve, mesh width 355 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
315 µm mesh width
№ 30.4200.03
Test sieve, mesh width 315 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
300 µm mesh width
№ 30.4205.03
Test sieve, mesh width 300 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
280 µm mesh width
№ 30.4300.03
Test sieve, mesh width 280 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
250 µm mesh width
№ 30.4400.03
Test sieve, mesh width 250 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
224 µm mesh width
№ 30.4500.03
Test sieve, mesh width 224 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
212 µm mesh width
№ 30.4505.03
Test sieve, mesh width 212 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
200 µm mesh width
№ 30.4600.03
Test sieve, mesh width 200 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
180 µm mesh width
№ 30.4700.03
Test sieve, mesh width 180 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
160 µm mesh width
№ 30.4800.03
Test sieve, mesh width 160 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
150 µm mesh width
№ 30.4805.03
Test sieve, mesh width 150 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
140 µm mesh width
№ 30.4900.03
Test sieve, mesh width 140 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
125 µm mesh width
№ 30.5000.03
Test sieve, mesh width 125 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
112 µm mesh width
№ 30.5100.03
Test sieve, mesh width 112 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
106 µm mesh width
№ 30.5105.03
Test sieve, mesh width 106 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
100 µm mesh width
№ 30.5200.03
Test sieve, mesh width 100 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
90 µm mesh width
№ 30.5400.03
Test sieve, mesh width 90 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
80 µm mesh width
№ 30.5600.03
Test sieve, mesh width 80 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
75 µm mesh width
№ 30.5700.03
Test sieve, mesh width 75 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
71 µm mesh width
№ 30.5800.03
Test sieve, mesh width 71 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
63 µm mesh width
№ 30.6000.03
Test sieve, mesh width 63 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
56 µm mesh width
№ 30.6200.03
Test sieve, mesh width 56 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
53 µm mesh width
№ 30.6300.03
Test sieve, mesh width 80 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
50 µm mesh width
№ 30.6400.03
Test sieve, mesh width 50 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
45 µm mesh width
№ 30.6600.03
Test sieve, mesh width 45 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
40 µm mesh width
№ 30.6800.03
Test sieve, mesh width 40 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
38 µm mesh width
№ 30.6900.03
Test sieve, mesh width 38 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
36 µm mesh width
№ 30.7000.03
Test sieve, mesh width 36 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
32 µm mesh width
№ 30.7200.03
Test sieve, mesh width 32 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
25 µm mesh width
№ 30.7600.03
Test sieve, mesh width 25 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
20 µm mesh width
№ 30.7800.03
Test sieve, mesh width 20 <span class="to-lower">µm</span>, ISO 3310-1

Test sieve 200 mm dia., 50 mm height, frame and mesh wire made of stainless steel with compliance certificate.
In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
8" dia., 2" height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data

Аналитические сита из нержавеющей стали, 8" Ø, 2" высота согласно ASTM E11

Руководство по выбору

  • Если Вам нужно аналитическое сито другого размера, учитывайте, пожалуйста, примеры заказа:

    отклонения от стандартных размеров сит ISO 3310-1 размер ячейки мм/мкм ASTM E11 mesh
    Аналитическое сито 5 мм размер ячейки
    200 мм Ø, высота 50 мм = стандартный размер
    например, 30.1800.03 например, 35.1800.03
    Аналитическое сито 5 мм размер ячейки
    200 мм Ø, высота 25 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 1 например, 30.1810.03 например, 35.1810.03
    Аналитическое сито 5 мм размер ячейки
    8 мм Ø, высота 2 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 2 например, 30.1820.03 например, 35.1820.03
    Аналитическое сито 5 мм размер ячейки
    100 мм Ø, высота 40 мм
    в № для заказа нужно заменить 0 на 5-й позиции на 4 например, 30.1840.03 например, 35.1840.03
  • Дополнительная информация

    Аналитические сита и принадлежности для сит с другими диаметрами и размерами ячеек по запросу.
    Аналитические сита из полиамида поставляются по запросу.
    Аналитические сита и принадлежности для рассева возврату не подлежат!

Для и рассева в сухой и жидкой среде с размерами ячеек от 20 мкм до 63 мм: особенно легкие, прочные и качественно изготовленные. Высоколегированная нержавеющая сталь защищает от коррозии и упрощает очистку. Переходы сетки без канавок предотвращают загрязнение просеиваемого материала. Каждое сито имеет лазерную гравировку, оптически измерено и поставляется с заводской справкой.

Выберите аналитические сита

Аналитические сита из нержавеющей стали, 8" Ø, 2" высота согласно ASTM E11, вкл. заводскую справку

1" = 25 mm mesh width
№ 35.0220.03
Test sieve, mesh width ASTM 1" = 25 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
7/8" = 22.4 mm mesh width
№ 35.0320.03
Test sieve, mesh width ASTM 7/8" = 22.4 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.

In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
3/4" = 19 mm mesh width
№ 35.0620.03
Test sieve, mesh width ASTM 3/4" = 19 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
5/8" = 16 mm mesh width
№ 35.0820.03
Test sieve, mesh width ASTM 5/8" = 16 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
0.53" = 13.2 mm mesh width
№ 35.0920.03
Test sieve, mesh width ASTM 0.53" = 13.2 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1/2" = 12.5 mm mesh width
№ 35.1020.03
Test sieve, mesh width ASTM 1/2" = 12.5 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
7/16" = 11.2 mm mesh width
№ 35.1120.03
Test sieve, mesh width ASTM 7/16" = 11.2 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
3/8" = 9.5 mm mesh width
№ 35.1220.03
Test sieve, mesh width ASTM 3/8" = 9.5 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
5/16" = 8 mm mesh width
№ 35.1420.03
Test sieve, mesh width ASTM 5/16" = 8 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
0.265" = 6.7 mm mesh width
№ 35.1520.03
Test sieve, mesh width ASTM 0.265" = 6.7 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
1/4" = 6.3 mm mesh width
№ 35.1620.03
Test sieve, mesh width ASTM 1/4" = 6.3 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
3 1/2 = 5.6 mm mesh width
№ 35.1720.03
Test sieve, mesh width ASTM 3 1/2 = 5.6 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
4 = 4.75 mm mesh width
№ 35.1820.03
Test sieve, mesh width ASTM 4 = 4.75 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
5 = 4 mm mesh width
№ 35.2020.03
Test sieve, mesh width ASTM 5 = 4 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
6 = 3.35 mm mesh width
№ 35.2120.03
Test sieve, mesh width ASTM 6 = 3.35 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
7 = 2.8 mm mesh width
№ 35.2320.03
Test sieve, mesh width ASTM 7 = 2.8 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
8 = 2.36 mm mesh width
№ 35.2420.03
Test sieve, mesh width ASTM 8 = 2.36 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
10 = 2 mm mesh width
№ 35.2620.03
Test sieve, mesh width ASTM 10 = 2 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
12 = 1.7 mm mesh width
№ 35.2820.03
Test sieve, mesh width ASTM 12 = 1.7 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
14 = 1.4 mm mesh width
№ 35.2920.03
Test sieve, mesh width ASTM 14 = 1.4 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
16 = 1.18 mm mesh width
№ 35.3020.03
Test sieve, mesh width ASTM 16 = 1.18 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
18 = 1 mm mesh width
№ 35.3220.03
Test sieve, mesh width ASTM 18 = 1 mm

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
20 = 850 µm mesh width
№ 35.3420.03
Test sieve, mesh width ASTM 20 = 850 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
25 = 710 µm mesh width
№ 35.3520.03
Test sieve, mesh width ASTM 25 = 710 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
30 = 600 µm mesh width
№ 35.3620.03
Test sieve, mesh width ASTM 30 = 600 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
35 = 500 µm mesh width
№ 35.3820.03
Test sieve, mesh width ASTM 35 = 500 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
40 = 425 µm mesh width
№ 35.4020.03
Test sieve, mesh width ASTM 40 = 425 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
45 = 355 µm mesh width
№ 35.4120.03
Test sieve, mesh width ASTM 45 = 355 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
50 = 300 µm mesh width
№ 35.4220.03
Test sieve, mesh width ASTM 50 = 300 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
60 = 250 µm mesh width
№ 35.4420.03
Test sieve, mesh width ASTM 60 = 250 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
70 = 212 µm mesh width
№ 35.4620.03
Test sieve, mesh width ASTM 70 = 212 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
80 = 180 µm mesh width
№ 35.4720.03
Test sieve, mesh width ASTM 80 = 180 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
100 = 150 µm mesh width
№ 35.4820.03
Test sieve, mesh width ASTM 100 = 150 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
120 = 125 µm mesh width
№ 35.5020.03
Test sieve, mesh width ASTM 120 = 125 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
140 = 106 µm mesh width
№ 35.5220.03
Test sieve, mesh width ASTM 140 = 106 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
170 = 90 µm mesh width
№ 35.5420.03
Test sieve, mesh width ASTM 170 = 90 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
200 = 75 µm mesh width
№ 35.5820.03
Test sieve, mesh width ASTM 200 = 75 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
230 = 63 µm mesh width
№ 35.6020.03
Test sieve, mesh width ASTM 230 = 63 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
270 = 53 µm mesh width
№ 35.6220.03
Test sieve, mesh width ASTM 270 = 53 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
325 = 45 µm mesh width
№ 35.6620.03
Test sieve, mesh width ASTM 325 = 45 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
400 = 38 µm mesh width
№ 35.7020.03
Test sieve, mesh width ASTM 400 = 38 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
450 = 32 µm mesh width
№ 35.7220.03
Test sieve, mesh width ASTM 450 = 32 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
500 = 25 µm mesh width
№ 35.7620.03
Test sieve, mesh width ASTM 500 = 25 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data
635 = 20 µm mesh width
№ 35.7820.03
Test sieve, mesh width ASTM 635 = 20 <span class="to-lower">µm</span>

Test sieve 8" dia., 2" height, frame and mesh wire made of stainless steel with compliance certificate.


In the selection aid you will find the order numbers for this sieve in the following sizes:
200 mm dia., 25 mm height
200 mm dia., 50 mm height
100 mm dia., 40 mm height


ЭЛЕМЕНТНЫЙ АНАЛИЗ
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi18-10
Chemical composition
ElementShare %
Iron – Fe66.75
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.9 g/cm³
Hardness215 HB


Explanations on hardness data

Микропрецизионные сита, край из нержавеющей стали, фольга сита и опорная сетка из чистого никеля 100 мм Ø, согласно ISO 3310-3

С ситами микропрецизионного рассева ANALYSETTE 3 PRO годится для рассева в жидкой среде тонкой пыли от 5 мкм до 100 мкм и мельчайших количеств проб от 0,05 до 0,5 г. Микропрецизионные сита из фольги из чистого никеля с диаметром сита в 100 мм выделяются большой открытой поверхностью сита. Благодаря вытравленным, расширяющимся вниз отверстиям, надежно предотвращается забивание. Подходящий набор натяжения, натяжная крышка, поддон сита, дистанционное кольцо сита и натяжное кольцо с быстроразъемным замком вместе с большой поверхностью сита позволяют рационально работать.

Выберите микропрецизионные сита

Микропрецизионные сита, край из нержавеющей стали, фольга сита и опорная сетка из чистого никеля 100 мм Ø, согласно ISO 3310-3

aperture size 5 µm
№ 32.0050.00
Micro-Precision Sieve, aperture size 5 <span class="to-lower">µm</span>,  ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 10 µm
№ 32.0100.00
Micro-Precision Sieve, aperture size 10 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 15 µm
№ 32.0150.00
Micro-Precision Sieve, aperture size 15 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 20 µm
№ 32.0200.00
Micro-Precision Sieve, aperture size 20 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 25 µm
№ 32.0250.00
Micro-Precision Sieve, aperture size 25 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 30 µm
№ 32.0300.00
Micro-Precision Sieve, aperture size 30 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 35 µm
№ 32.0350.00
Micro-Precision Sieve, aperture size 35 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 40 µm
№ 32.0400.00
Micro-Precision Sieve, aperture size 40 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 45 µm
№ 32.0450.00
Micro-Precision Sieve, aperture size 45 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 50 µm
№ 32.0500.00
Micro-Precision Sieve, aperture size 50 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 60 µm
№ 32.0600.00
Micro-Precision Sieve, aperture size 60 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 70 µm
№ 32.0700.00
Micro-Precision Sieve, aperture size 70 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 80 µm
№ 32.0800.00
Micro-Precision Sieve, aperture size 80 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 90 µm
№ 32.0900.00
Micro-Precision Sieve, aperture size 90 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data

aperture size 100 µm
№ 32.1000.00
Micro-Precision Sieve, aperture size 100 <span class="to-lower">µm</span>, ISO 3310-3

Micro-precision sieves 100 mm dia., frame made of stainless steel, sieve foil and grid made of pure nickel.


They feature a large open sieving surface and blockages are reliably prevented by the etched-in holes that widen toward the bottom. The matching clamping set, sieve clamping lid, sieve pan, sieve spacer and fast locking clamp along with the large sieve surface permit efficient sieving.


ЭЛЕМЕНТНЫЙ АНАЛИЗ
1. Frame
General specifications
MaterialStainless steel – 1.4305
ISO/EN/DIN codeX10CrNiS18-9 / X8CrNiS18-9
Chemical composition
ElementShare %
Iron – Fe70.6 – 66.4
Carbon – C0.10
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.15 – 0.35
Chromium – Cr17 – 19
Nickel – Ni8 – 10
Copper - Cu1.00
Nitrogen - N0.11
Physical and mechanical properties
Density7.8 g/cm³
Hardnessapprox. 60 HRB


2. Sieve foil
General specifications
MaterialNickel
DIN code17740
Chemical composition
ElementShare %
Nickel – Ni99.95
Sulphur – S0.015
Carbon – C0.009
Nitrogen - N0.001
other 0.016
Physical and mechanical properties
Density 8.908 g/cm³
Hardness 4 Mohs


Explanations on hardness data
